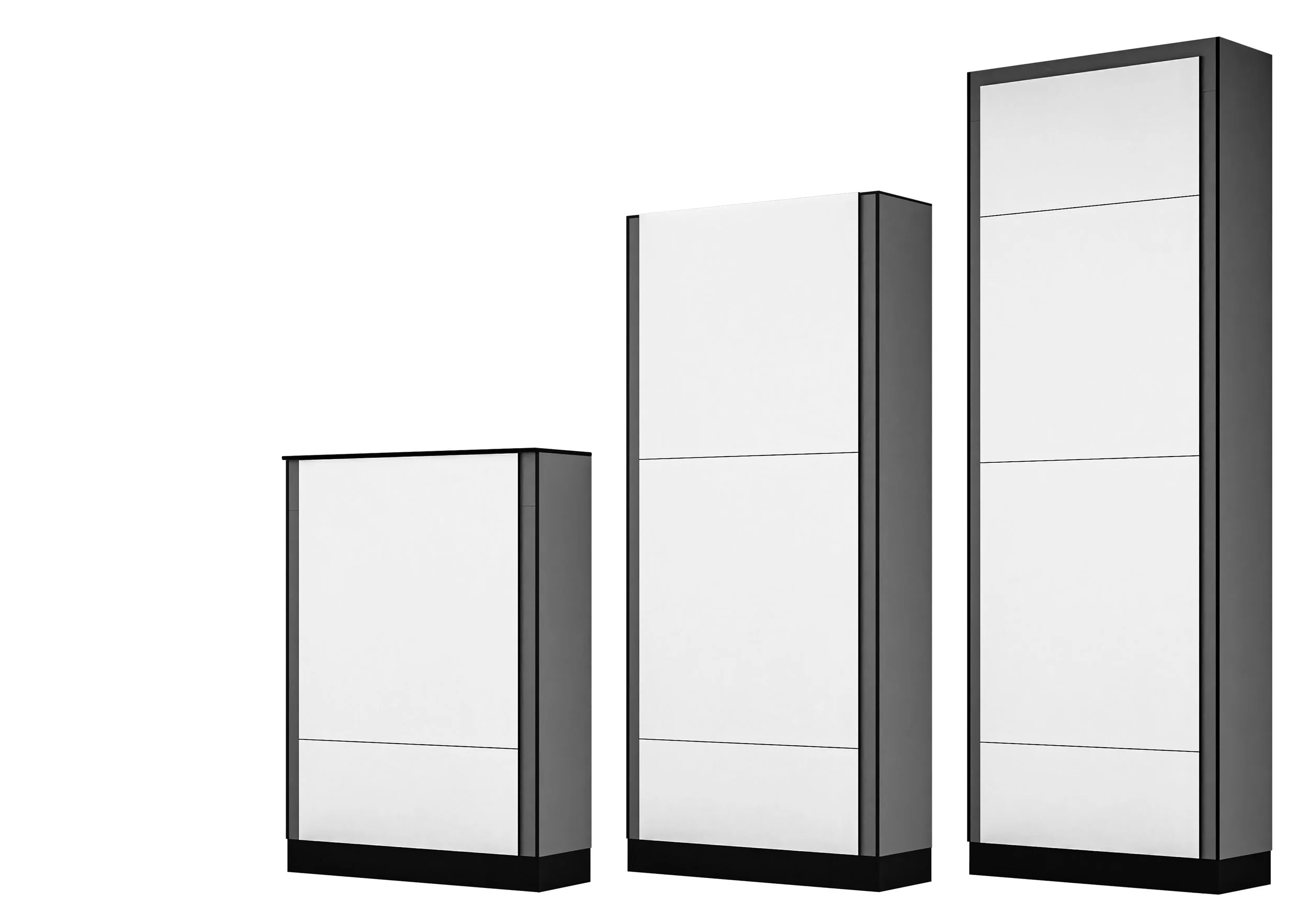

Three tall, rectangular, black-framed varying heights of duct panelling

Duct panelling

Elegantly conceal pipework & services

Duct panels provide a practical finish to a washroom with convenient access to pipework for easy maintenance.

Request a quote
Resources
Overview

Straight-forward installation and maintenance access

Fabricated from 12mm SGL with polished black edges, panels are factory-cut to project dimensions and prepared for shadow gaps and screw-fix points. They clip on or hinge from concealed fittings, fixing to a timber sub-frame hidden by shadow-gap strips. Locks can be added for security. A 100mm black-faced plinth (or SGL for wet areas) conceals the base, while sectional panels allow fast access to services. WCs, basins, urinals, and divisions fix directly to panels or shadows. Options include low-, cubicle-, and full-height panels at 700mm or 800mm wide with variable heights. Fully impervious and wipe-clean, the system suits wet and dry areas, with a moisture-resistant plinth option. Panels have a 50-year design life and come with a 15-year warranty.

Privacy panels

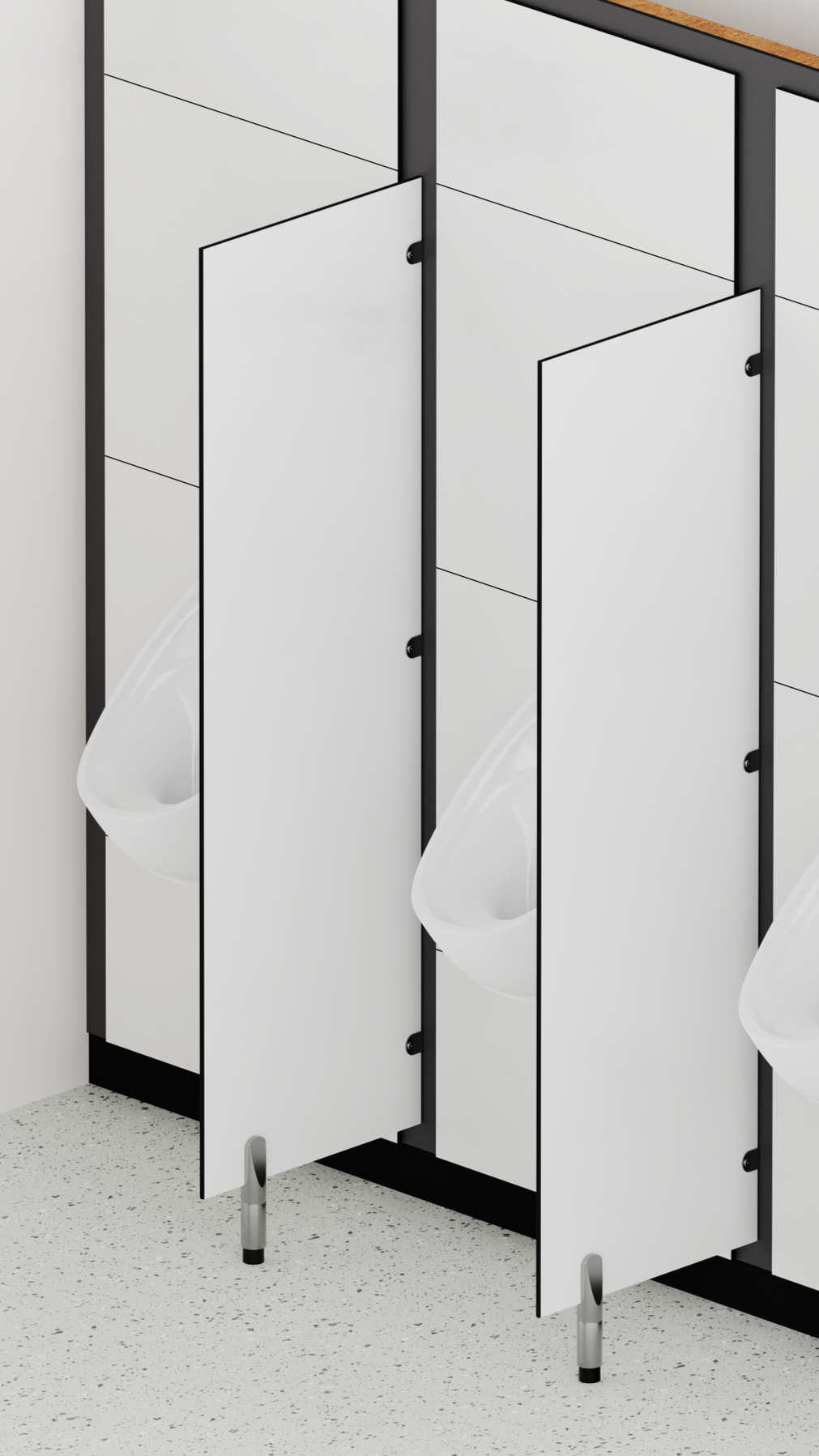

Trovex washrooms duct panelling, privacy panel pedestal

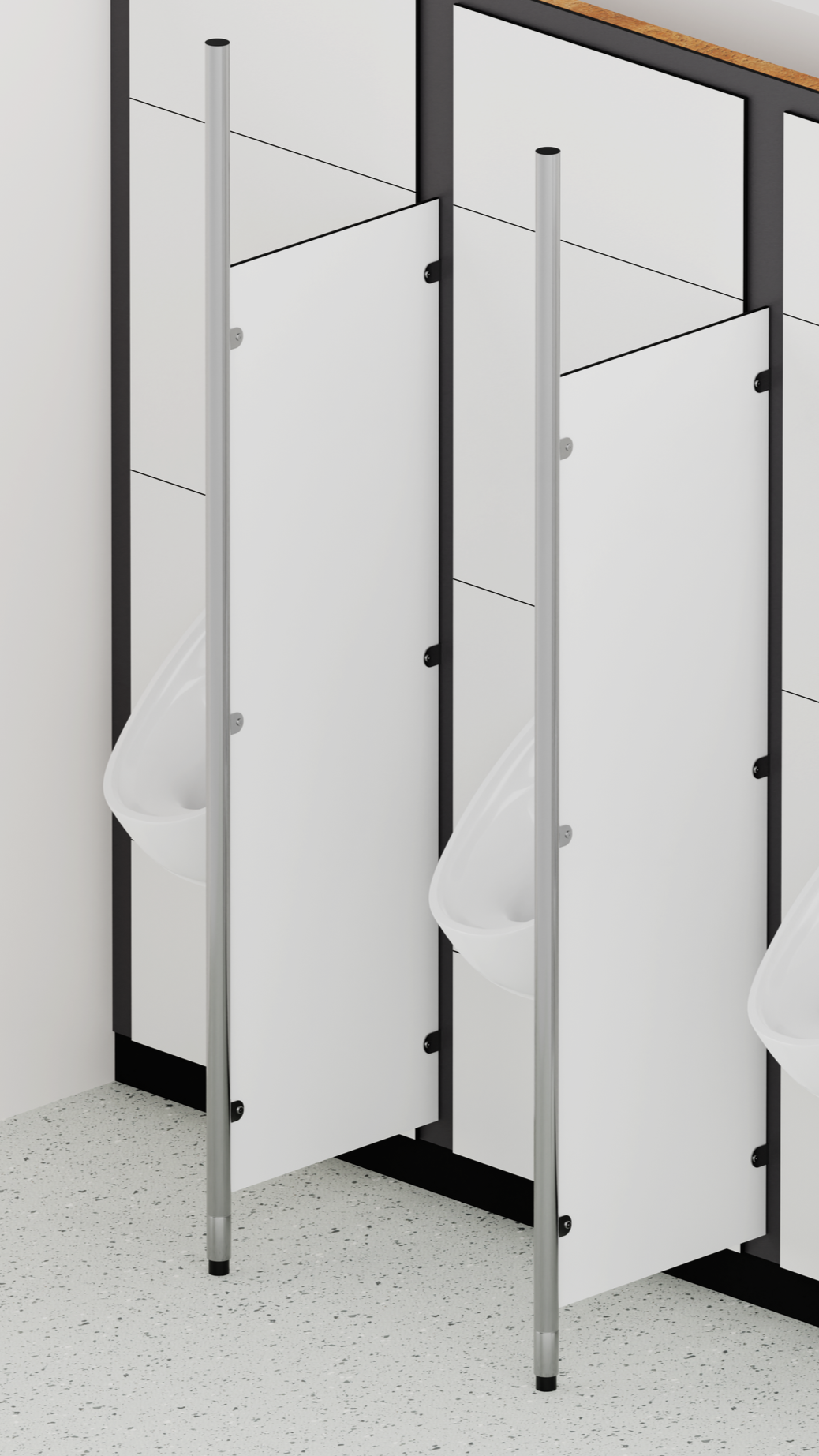

Trovex washrooms duct panelling, privacy panel floor to ceiling

Pedestal

Floor-to-ceiling

View floor-to-ceiling
View pedestal
In a typical pack

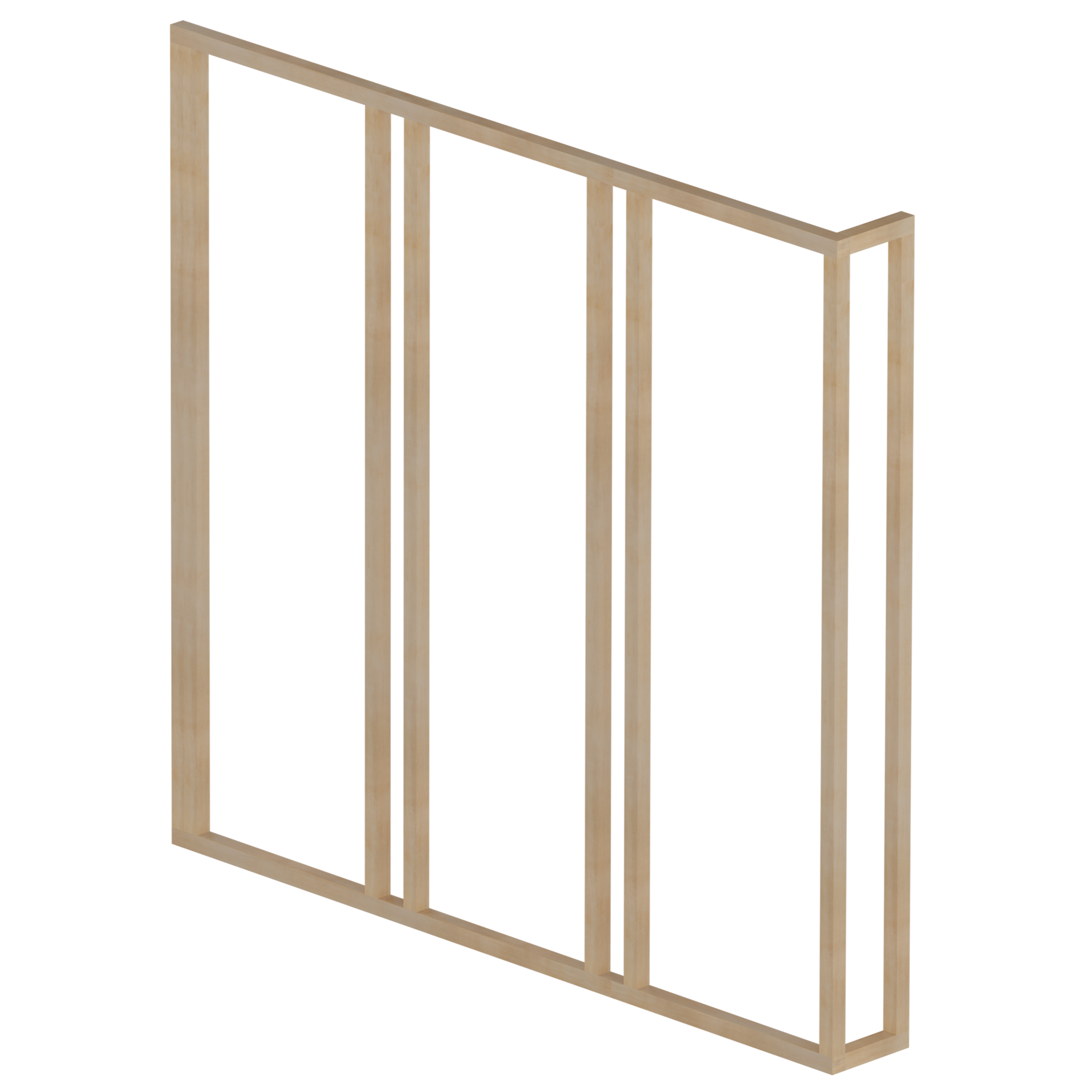

  • Duct panel frame

    Frame

    *Frame supplied by others

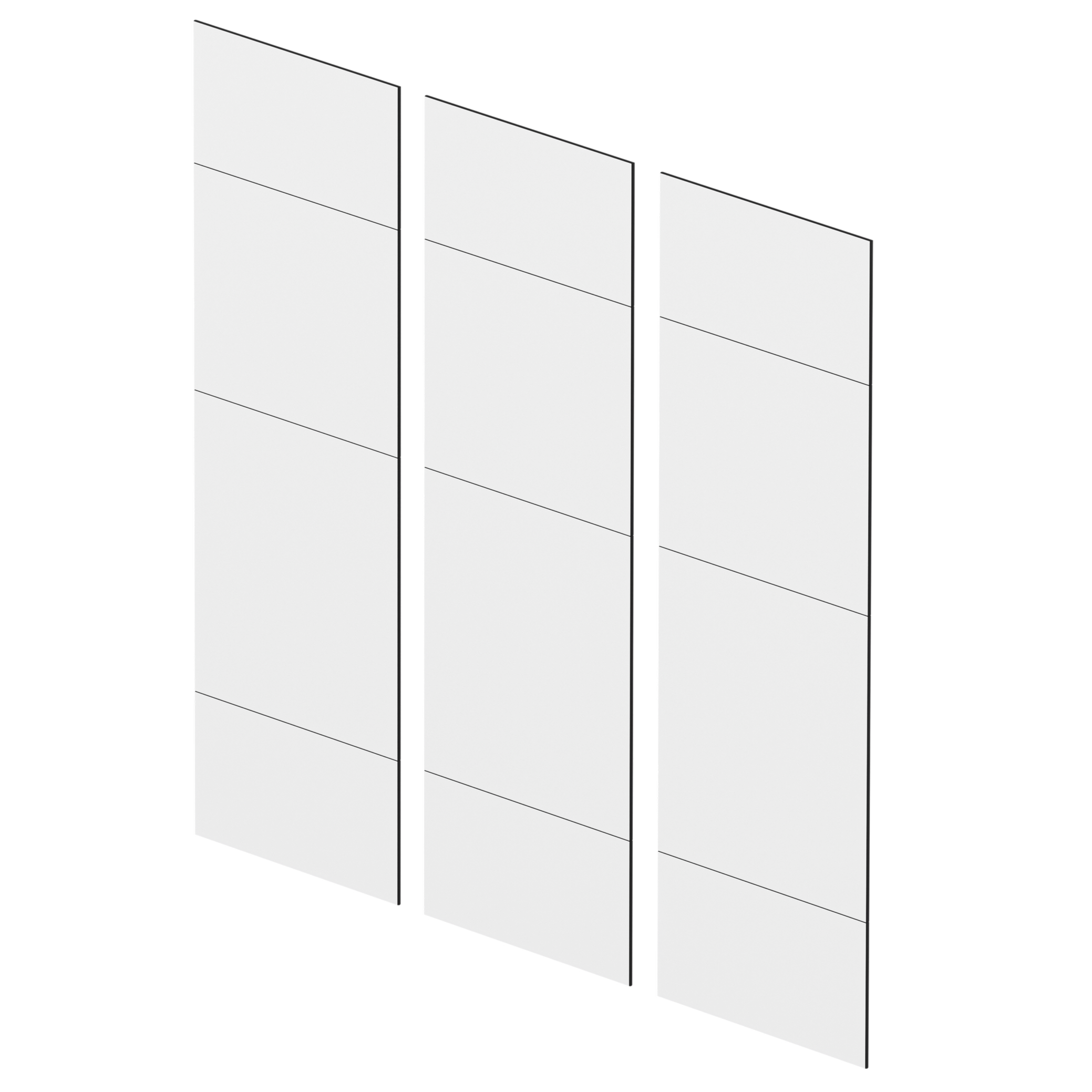

  • Duct panel panels

    Duct panels

    Removable panels for service access

  • Duct panel shadows

    Shadows

    Fixed duct panel surrounds concealing frame

  • Duct panel plinth

    Plinth

    Base support for duct panel system

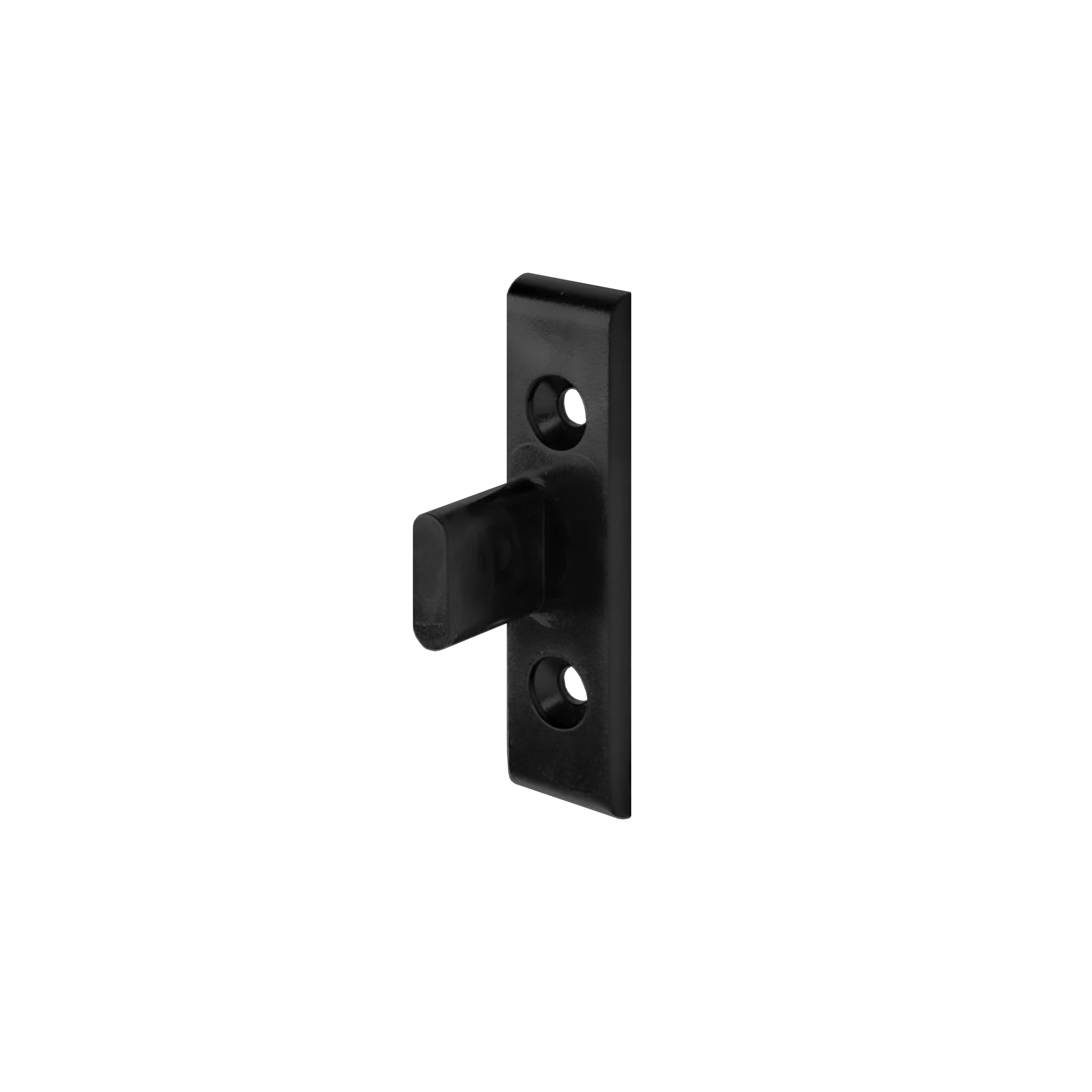

  • Duct panel fixing kit

    Fixing kit

    Components for securing duct panels

  • Duct panel sanitaryware

    Sanitaryware

    Cisterns, urinals, toilets and seats as specified

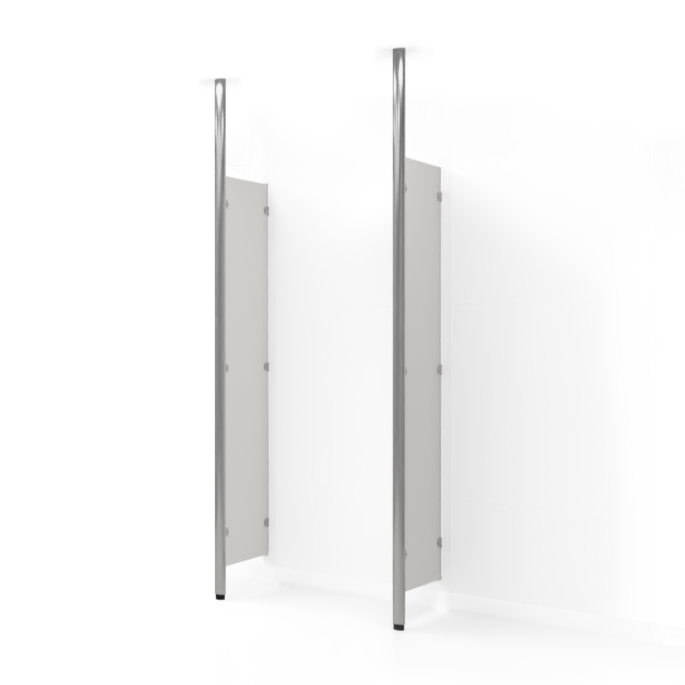

  • Duct panel privacy screens

    Privacy screens

    Optional between duct privacy screens

Resources
Drawings & specifications

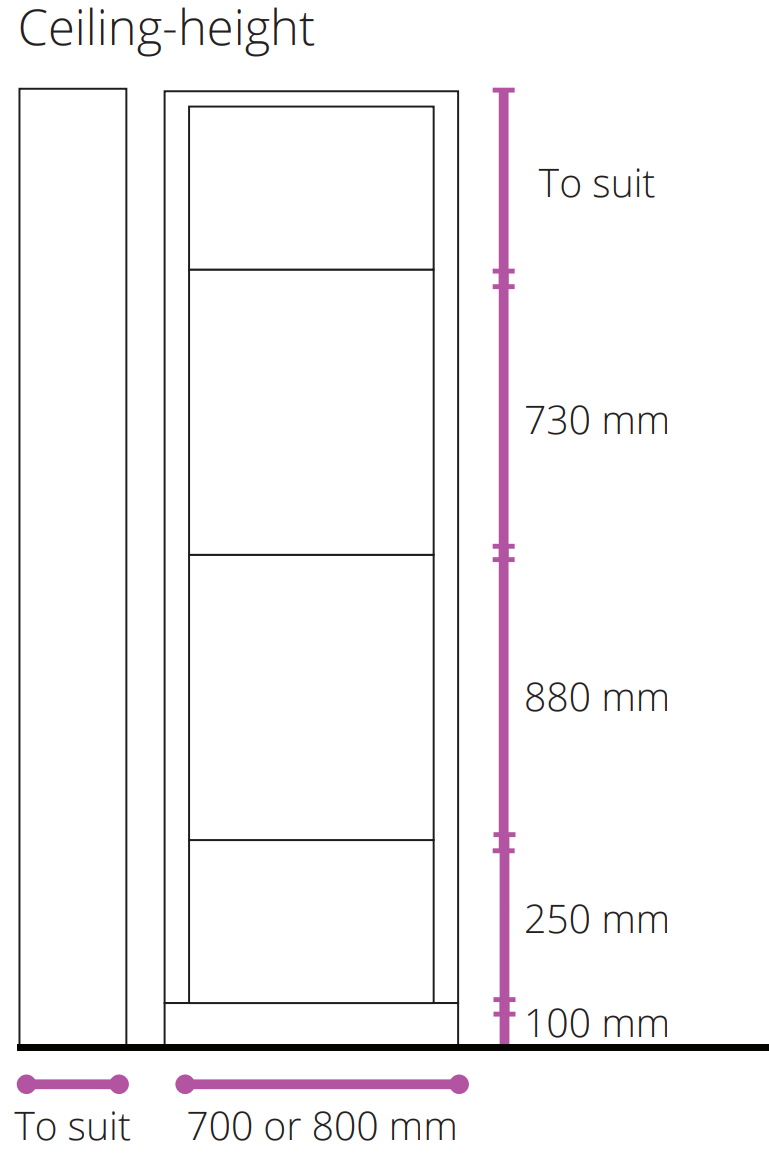

Duct panel drawings
Duct panel drawings
Duct panel drawings

*The dimensions on the illustration are example, the system can be manufactured to suit requirements.

  • 12mm thick solid-grade laminate (SGL) with laminated particleboard shadow gap strips

  • Black radiused and polished edges

  • From the Trovex Washroom colour range

  • Cut to suit dimensions, hung on concealed clips, screw-fixed to 44mm x 44mm PSE softwood frame (supplied by others). Panels commence 100mm a/FFL to allow for skirting detail (by others), with three height options: full-height, cubicle-height or low-level

  • All clips and fixings supplied with panels
