Vanity units

Attractive, practical vanity tops & units

Outstanding durability, straightforward installation and ease of maintenance access.

Request a quote
Resources
Overview

Durability, simplicity and custom fit

Our vanity units are durable, modular solutions for high-traffic washrooms in healthcare, education and commercial settings. Pre-assembled for quick installation, they feature a laminate-faced frame, SGL access panels and a black-faced ply plinth. Designed to coordinate with cubicles and panelling, they offer easy maintenance, colour and height options, and UK-made quality refined over 25 years.

Variants

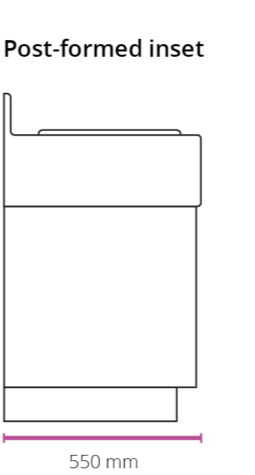

  • HPL inset sink

    HPL inset sink

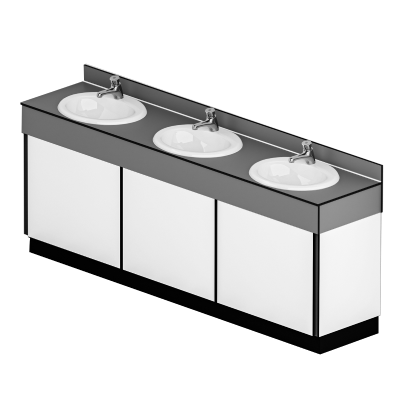

  • SGL inset sink

    SGL inset sink

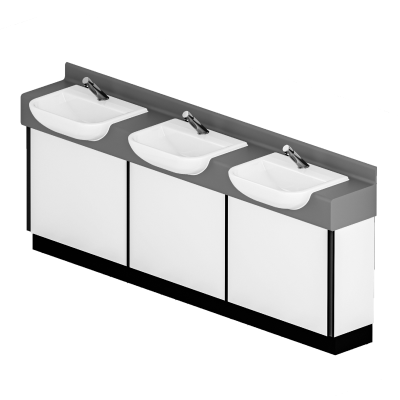

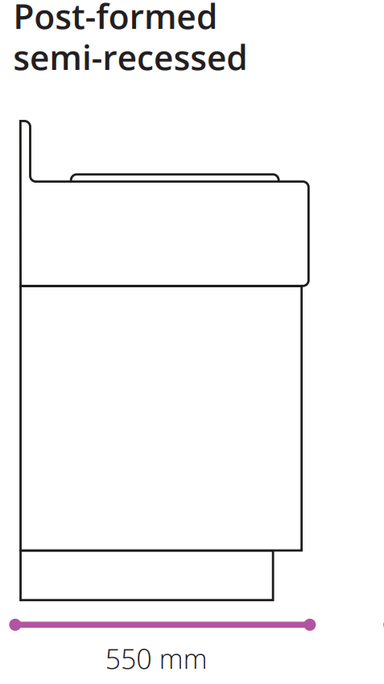

  • HPL semi-recessed sink

    HPL semi-recessed sink

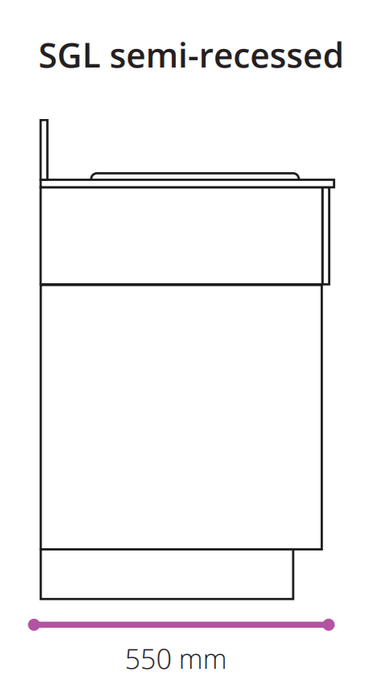

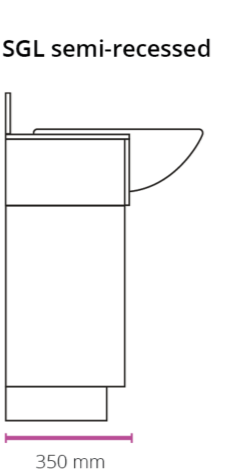

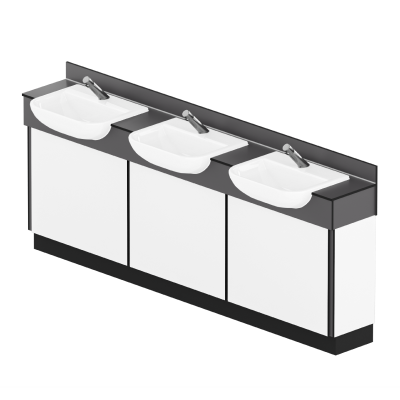

  • SGL semi-recessed sink

    SGL semi-recessed sink

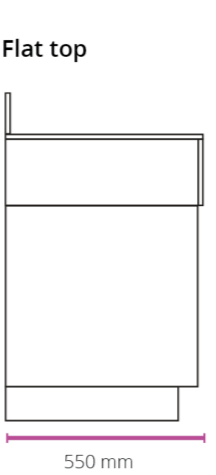

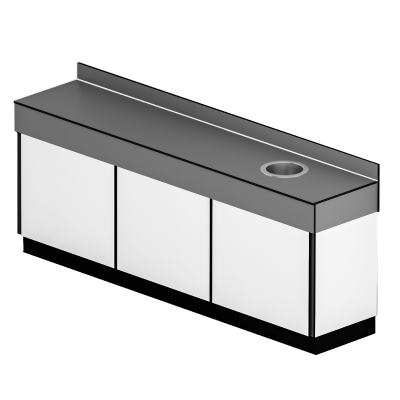

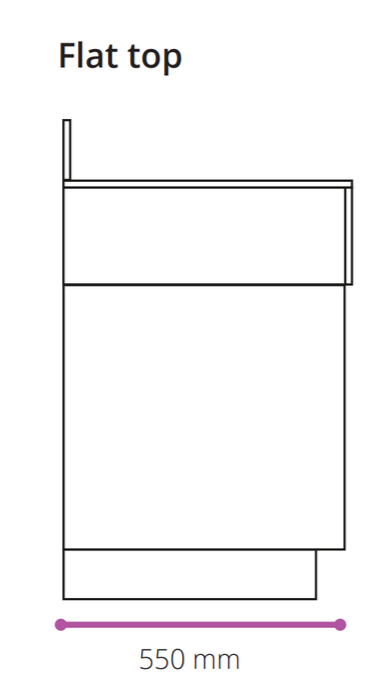

  • SGL flat top

    SGL flat top

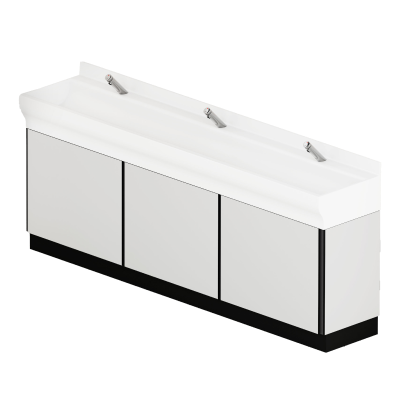

  • Smarttrough

    Smarttrough

Access options
  • Hinged

    Hinged

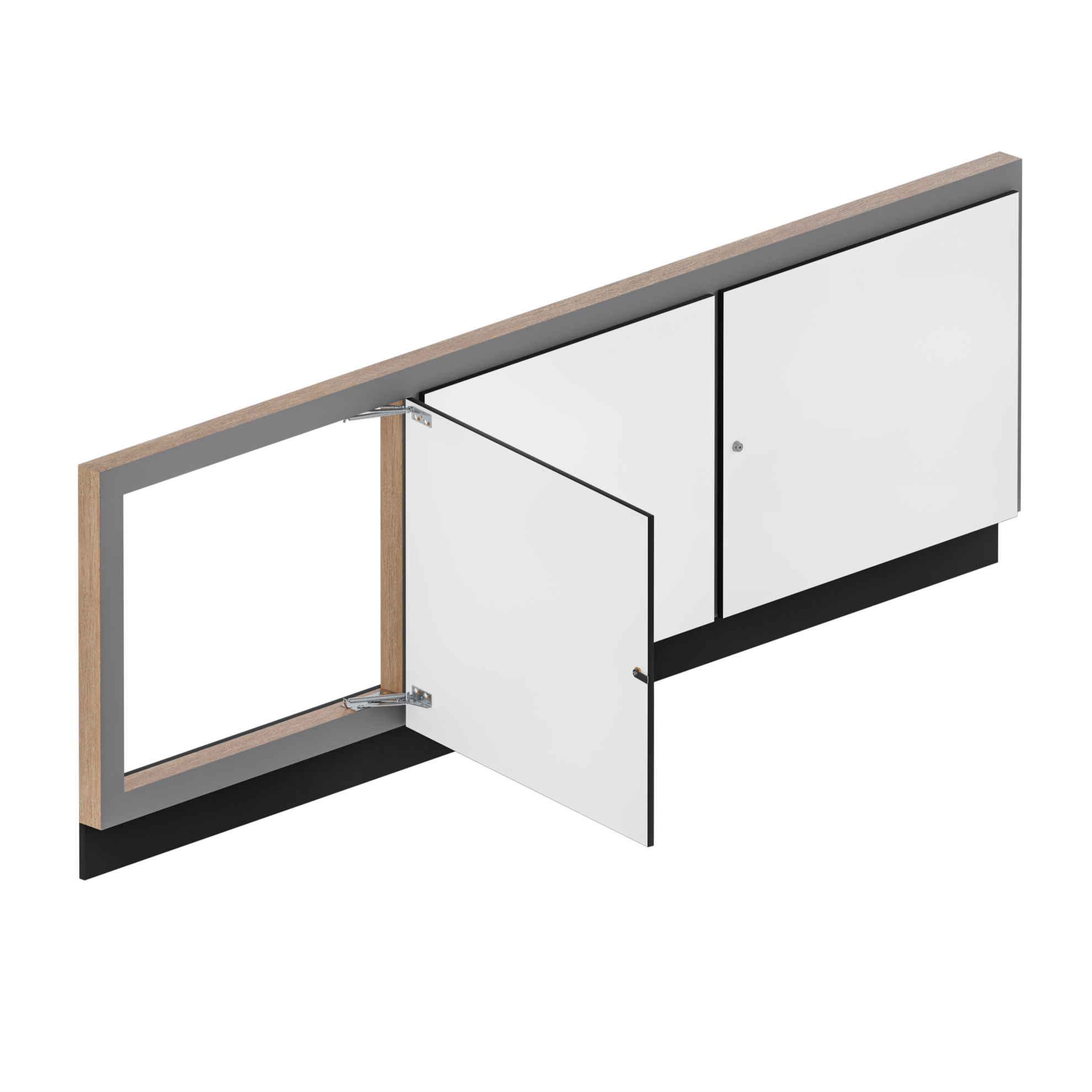

  • Hinged & locking

    Hinged & locking

In a typical pack

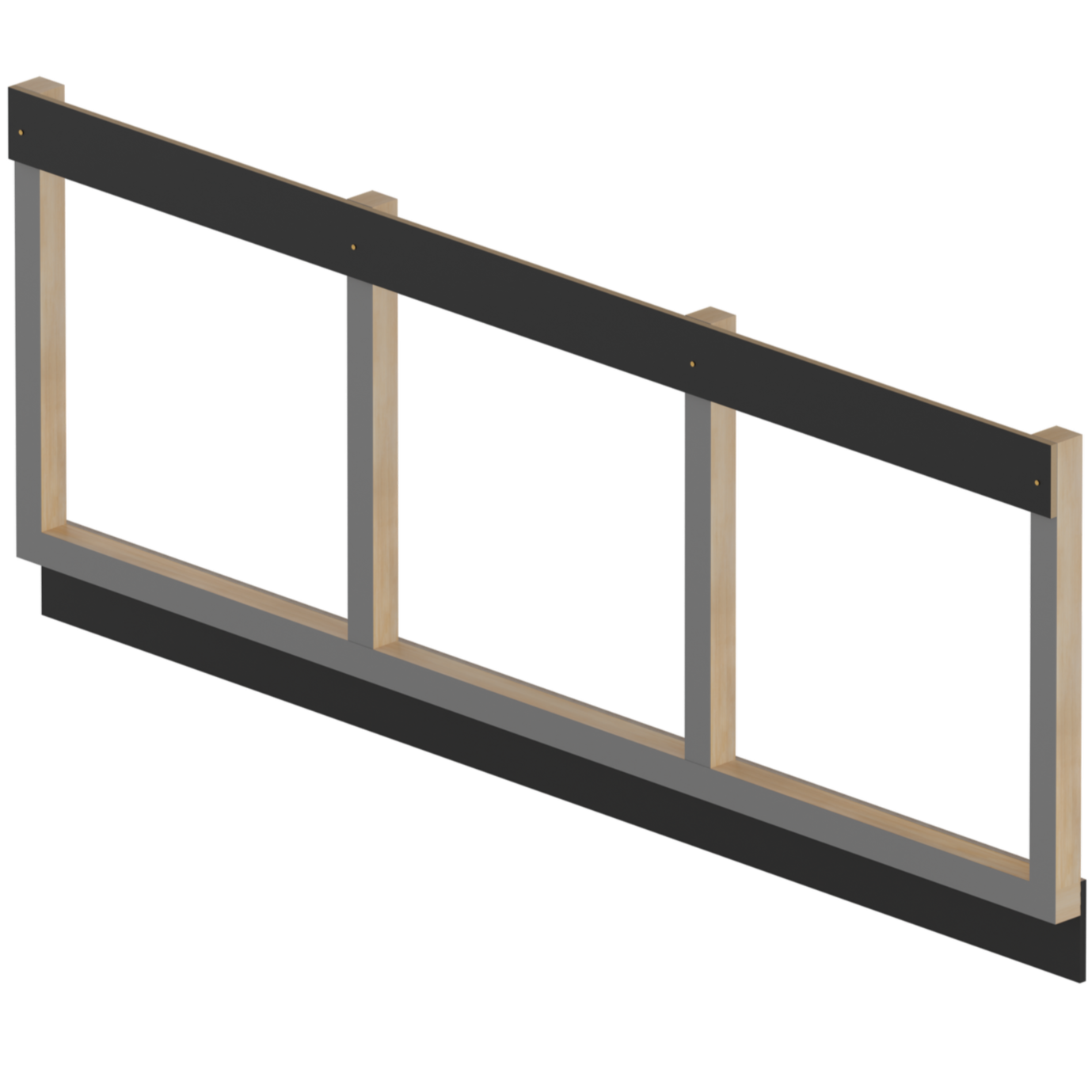

  • Frame

    Frame

    Support structure for vanity installation

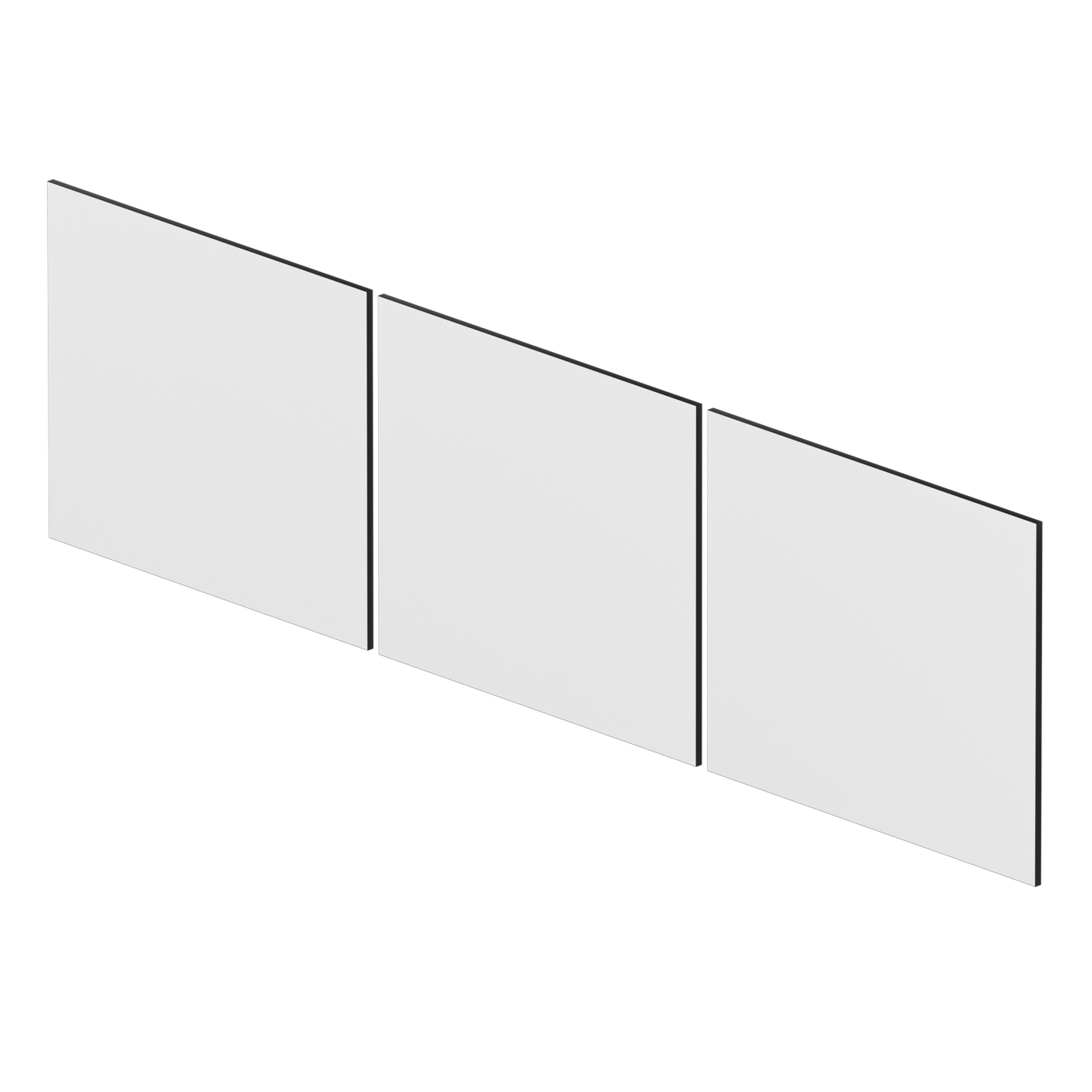

  • Access panels

    Access panels

    Removable panels for maintenance access

  • Vanity top

    Vanity top

    Surface for basin installation

  • Button fix

    Button fix

    Fixing system for easy maintenance

  • Sanitaryware

    Sanitaryware

    Basins, taps and fittings for vanity units

Resources
Drawings & specifications
Vanity units drawings
Vanity units drawings
Vanity units drawings
Vanity units drawings
Vanity units drawings
Vanity units drawings
Vanity units drawings

*The height shown in the illustration is an example; the system can be manufactured to suit height requirements

  • » SGL - 12mm thick solid grade laminate with black radiused and polished edge

    » HPL - 18mm thick MR/MDF postformed to all long edges with 100mm rear upstand and 200mm front apron

  • Laminate faced 44mm x 44mm PSE softwood frame preassembled with access panels and 100mm high black faced ply plinth

  • 12mm thick solid grade laminate with black radiused and polished edges

  • » 550mm depth for inset basins

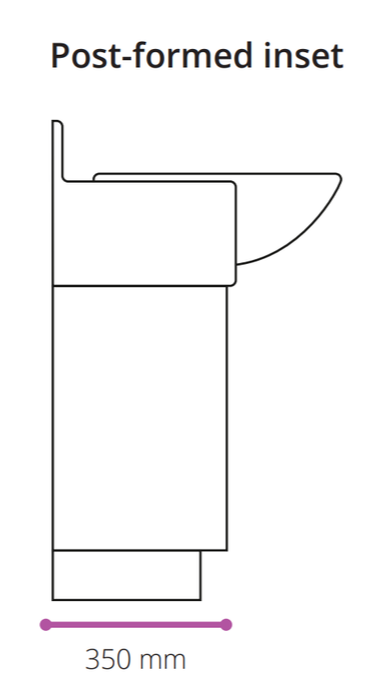

    » 350mm depth for semi-recessed basins

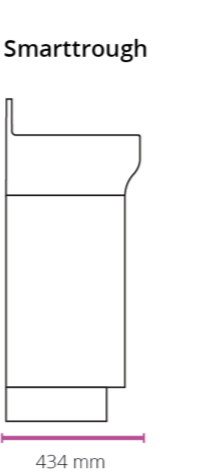

    » 434 depth for Smarttrough

  • From the Trovex Washroom colour range

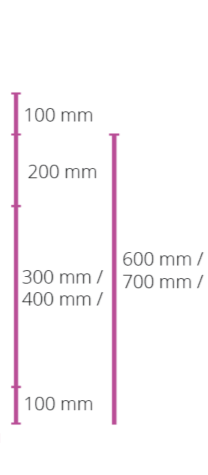

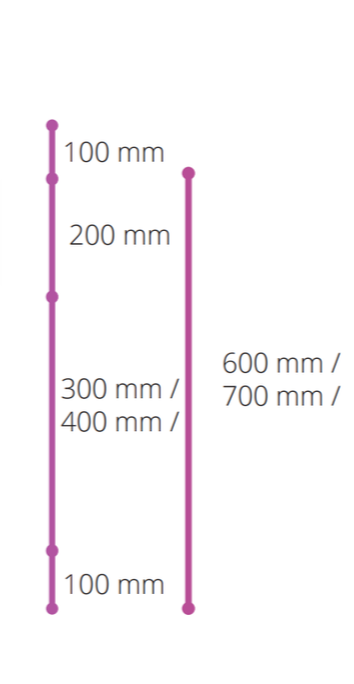

  • » Horizontal top above FFL: 800mm standard (600mm or 700mm for K2:12 Juniors)

    » Upstand: 100mm

    » Front apron: 200mm

    » Access panel: 500mm (300mm or 400mm for K2:12 Juniors)

    » Skirting: Panels commence 100mm above FFL
