Junior (K2:12) cubicle systems

Junior (K2:12)

Encouraging hygiene and imagination

Designed for education environments, Junior offers ease of supervision for guardians whilst enabling the creation of a bright and welcoming environment for children.

Request a quote
Resources
Overview

Guardian and child-friendly

The Junior cubicle system combines playful design with child-safe features. Made from 12mm SGL with polished edges, panels are available with branded prints for bright, engaging interiors. Lowered doors and divisions allow informal supervision while maintaining privacy. Satin-anodised aluminium pedestals and D-profile headrails provide sturdy support. Hardware includes rise-and-fall hinges, DDA-compliant indicator bolts, and optional coat hooks, all pre-drilled for quick installation.

Ratings:

Robustness:

Privacy:

Price:

Doors, divisions and pilasters Robust solid grade laminate with black radiused edges
Trovex Junior Cubicle system dimensions

Solid grade laminate

Solid grade laminate (SGL) is highly resistant to impact, scratches, and moisture, ensuring it can withstand the demanding conditions of high-traffic public and commercial bathrooms. Additionally, solid grade laminate is non-porous, which means it does not harbour bacteria or odours. It is also easy to clean and maintain, requiring minimal upkeep.

  • 12 mm thick solid grade laminate (SGL)

  • Black radiused and polished

  • Over 25 options for SGL colours and finishes

  • 1650, 1500 or 1350 mm - overall height AFFL including 150 mm floor clearance

  • 1960 mm - overall height AFFL including 150 mm floor clearance

  • 1800 mm - maximum recommended depth of cubicle including duct

In a typical pack
  • Trovex Junior Cubicle doors

    Doors

    Pre-drilled cubicle doors for easy installation

  • Trovex Junior Cubicle divisions

    Divisions

    Panels separating individual cubicle spaces

  • Trovex Junior Cubicle pilasters

    Pilasters

    Front support panels between cubicles

  • Trovex Junior Cubicle headrail

    Head rail

    Anodised aluminium headrail with end caps

  • Trovex Junior Cubicle pedestal kit

    Pedestals kit

    Height-adjustable cubicle floor mount

  • Trovex Junior Cubicle indicator lock

    Indicator lock

    DDA compliant lock with emergency release

  • Trovex Junior Cubicle cleat kit

    Cleat kit

    Fixings for quick and secure cubicle assembly

  • Trovex Junior Cubicle sanitaryware

    Sanitaryware

    Cisterns, toilet pans and seats as specified

  • Trovex Junior Cubicle accessories

    Accessories

    Dispensers and coat hooks to suit

Drawings

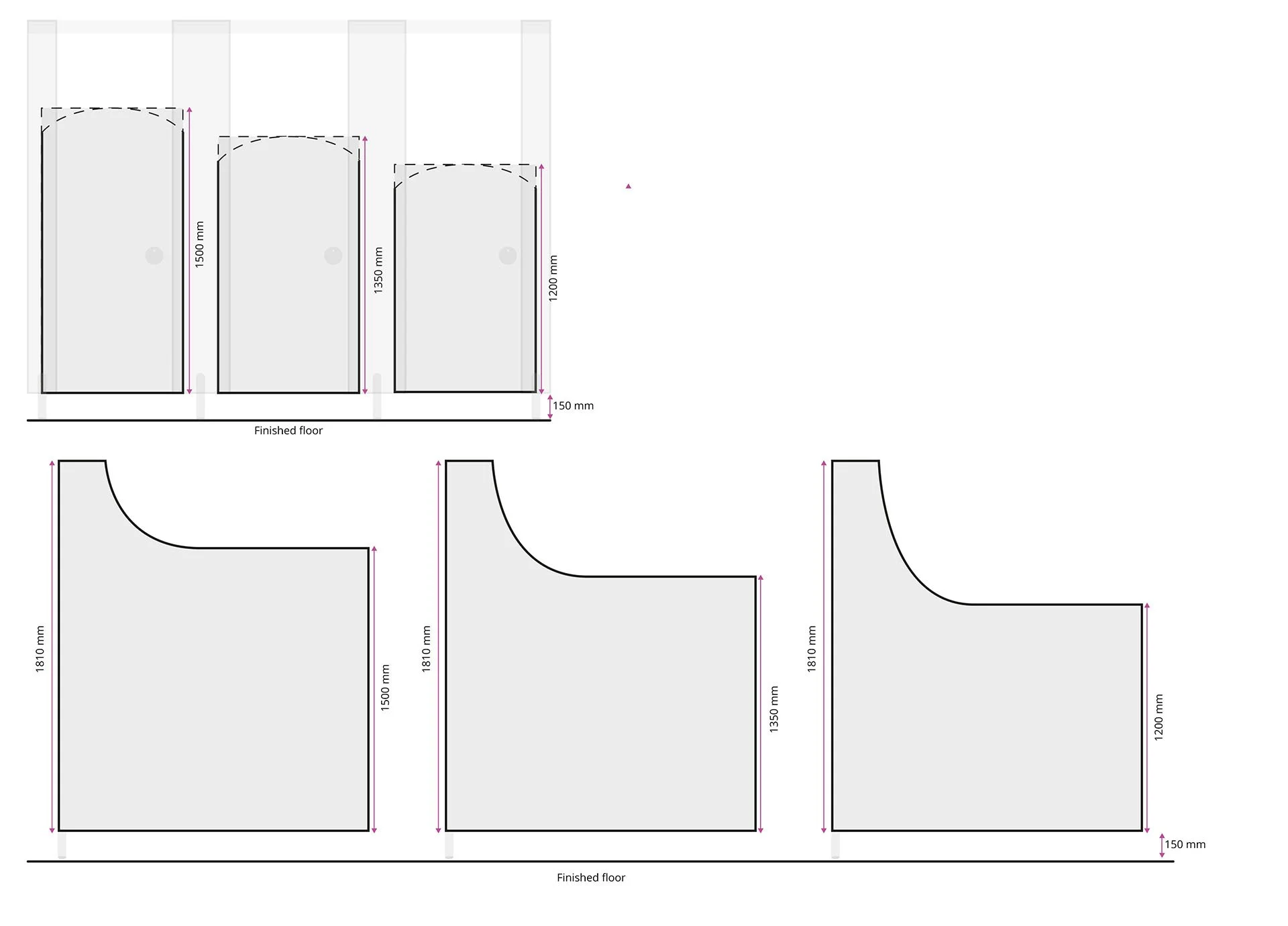

Junior (K2:12) drawings
Junior (K2:12) drawings

*The dimensions on the illustration are example, the system can be manufactured to suit requirements.

Resources
Colours and finishes With many possible colour and finish combinations, easily create the perfect washroom for your business
  • Trovex Junior Cubicle System finish
  • Trovex Junior Cubicle System finish
  • Trovex Junior Cubicle System finish
  • Trovex Junior Cubicle System finish
  • Trovex Junior Cubicle System finish
  • Trovex Junior Cubicle System finish
Colours & finishes
