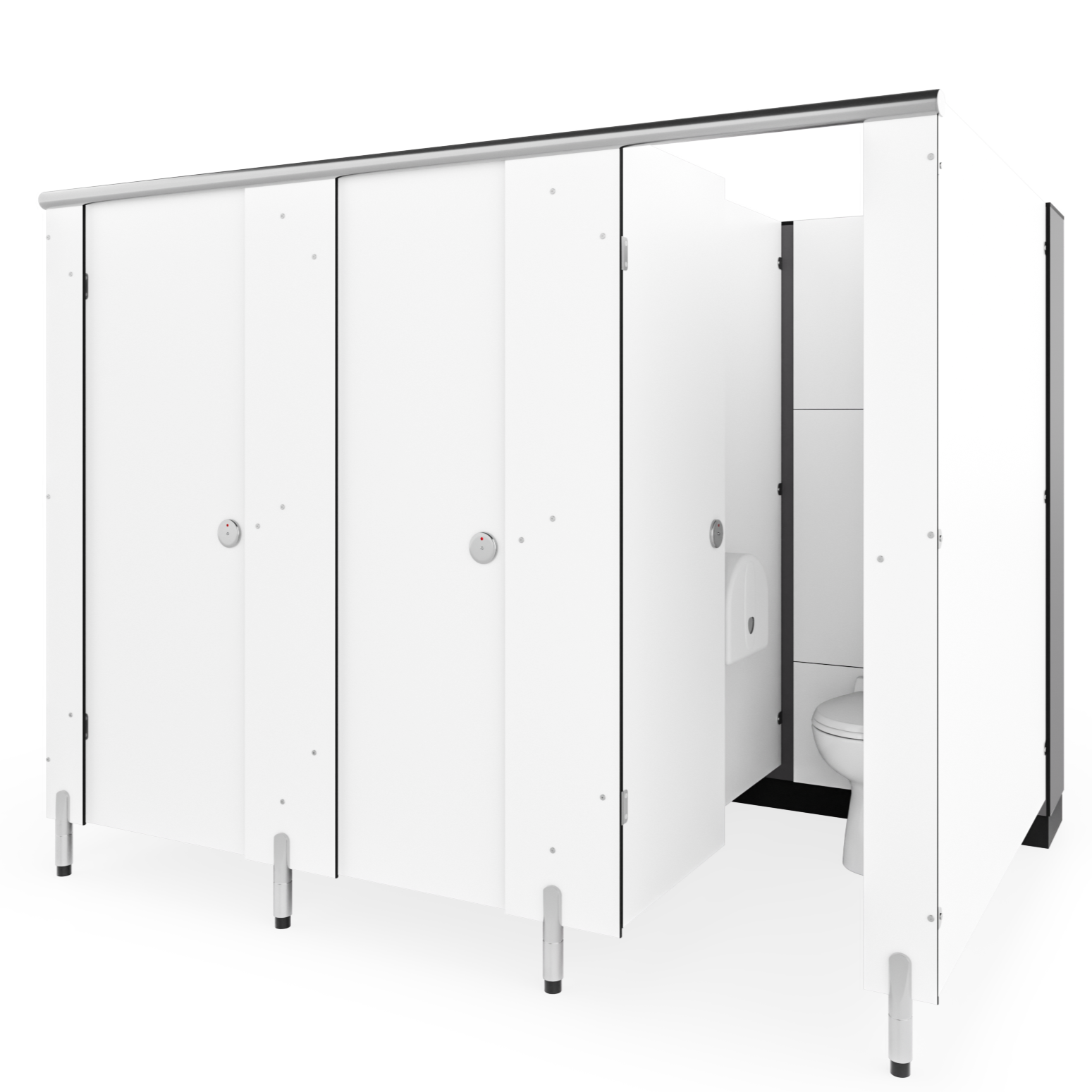

Essential (S3:60)
Ideal cubicle system for busy washrooms
Our most popular system, used throughout toilets and changing rooms thanks to its long-lasting durability and minimal ongoing maintenance.
Versatile and robust

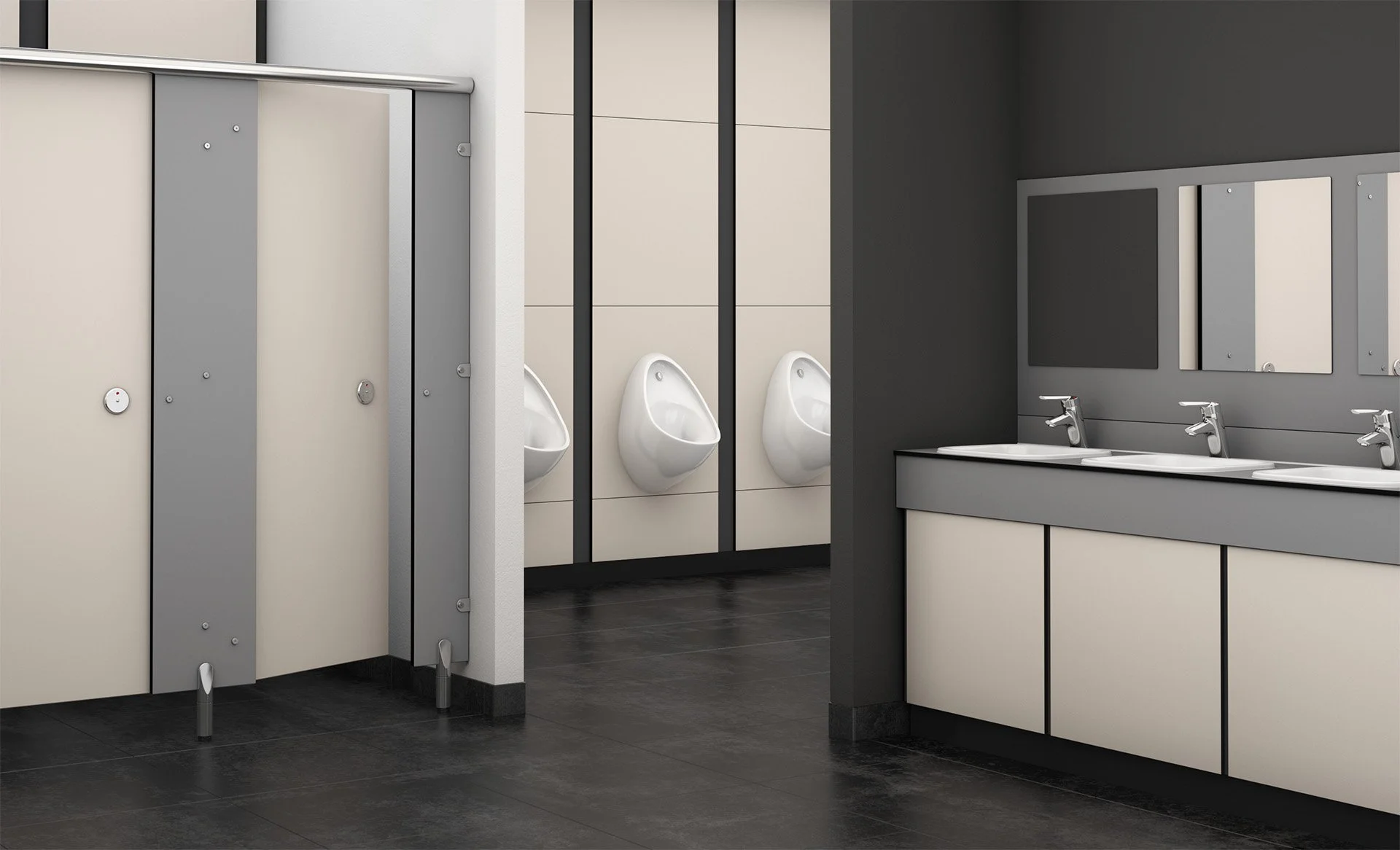

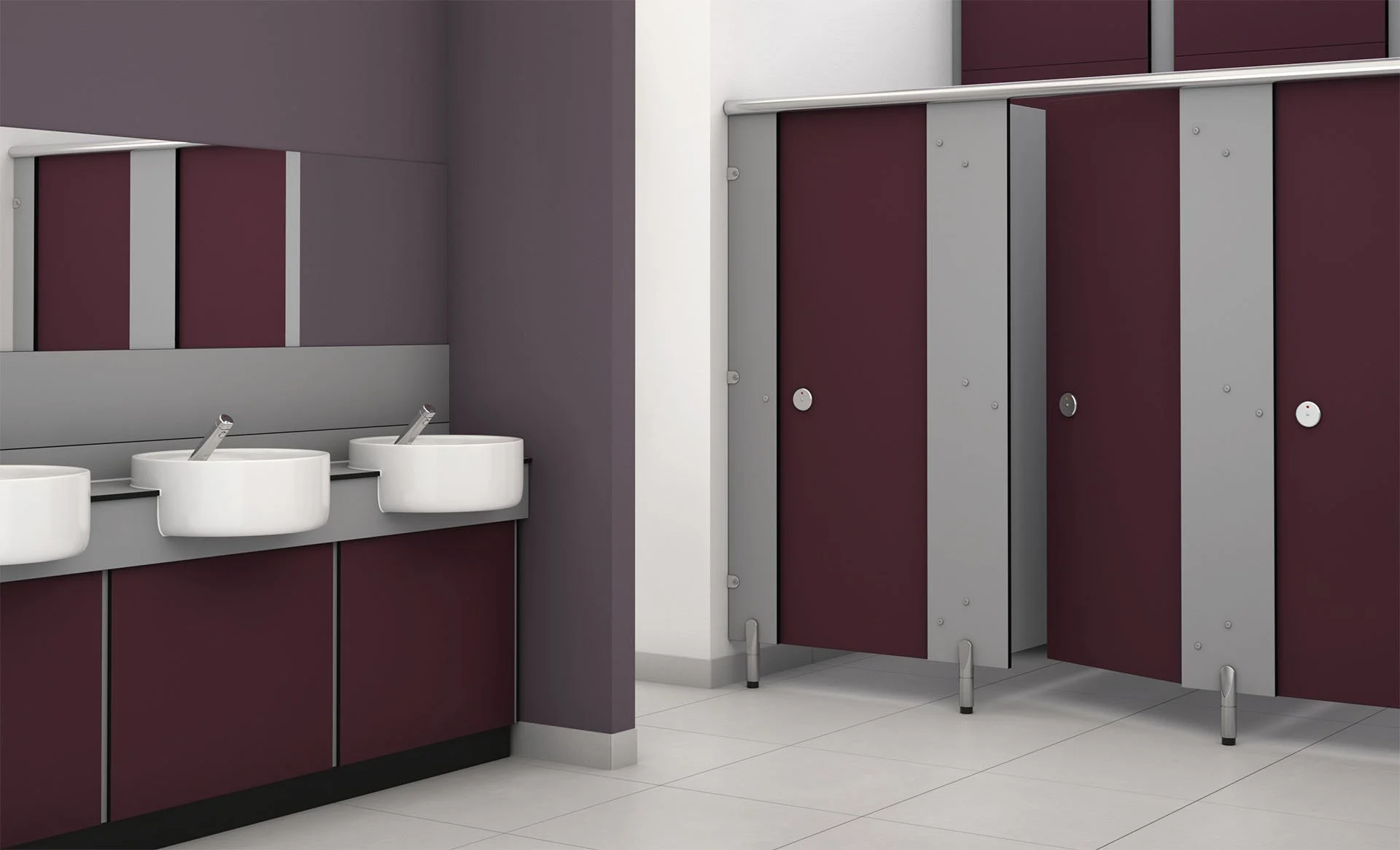

The Essential cubicle system combines simplicity with durability for high-traffic washrooms. Made from 12mm SGL with black, polished edges, panels are supported by satin-anodised aluminium pedestals and a D-profile headrail with end caps. Bolt-through fixings ensure strength. Hardware includes stainless-steel rise-and-fall, anti-finger-trap hinges, DDA-compliant indicator bolts, and coat hooks in bolt-through or face-fix formats. All components are pre-drilled and factory-finished for easy installation. Standard sizes: 1960mm AFFL (150mm clearance), 1500mm depth (1800mm optional), 700mm min width, 1810mm division height.
Ratings:
Robustness:
Privacy:
Price:
Solid grade laminate
Solid grade laminate (SGL) is highly resistant to impact, scratches, and moisture, ensuring it can withstand the demanding conditions of high-traffic public and commercial bathrooms. Additionally, solid grade laminate is non-porous, which means it does not harbour bacteria or odours. It is also easy to clean and maintain, requiring minimal upkeep.
-
12 mm thick solid grade laminate (SGL)
-
Black radiused and polished
-
Over 25 options for SGL colours and finishes
-

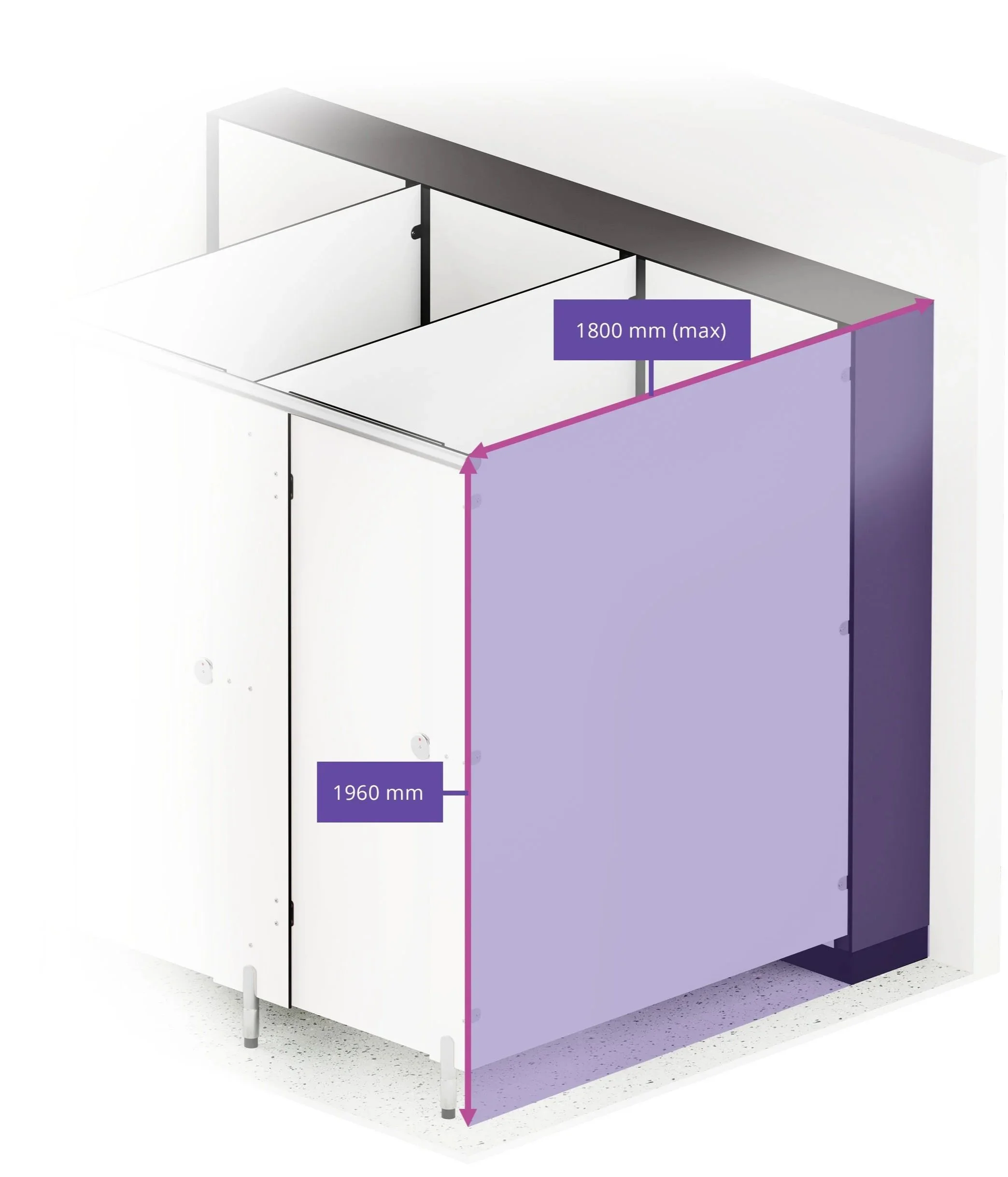

1960 mm - overall height AFFL including 150 mm floor clearance
-
1800 mm - maximum recommended depth of cubicle including duct
-

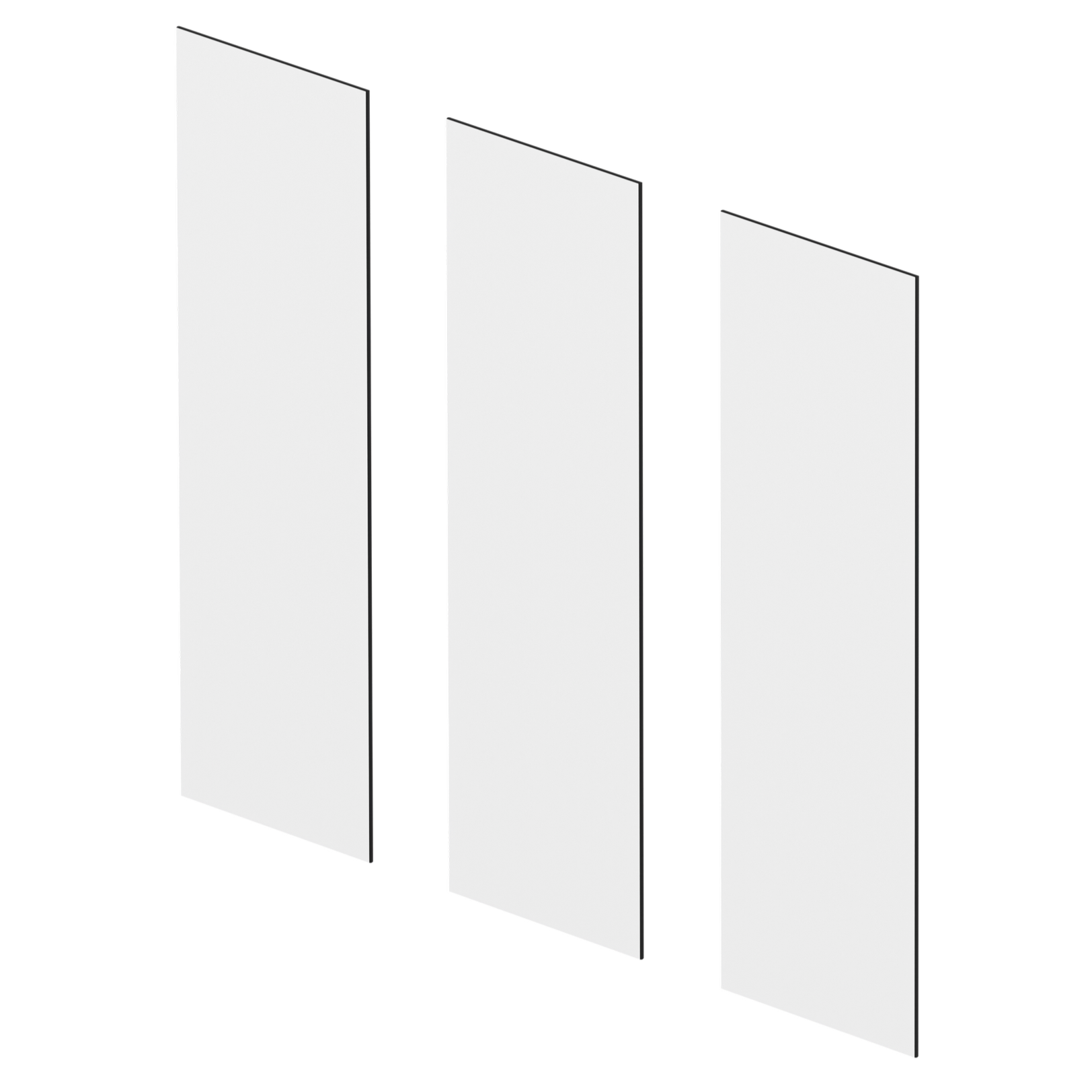

Doors
Pre-drilled cubicle doors for easy installation
-

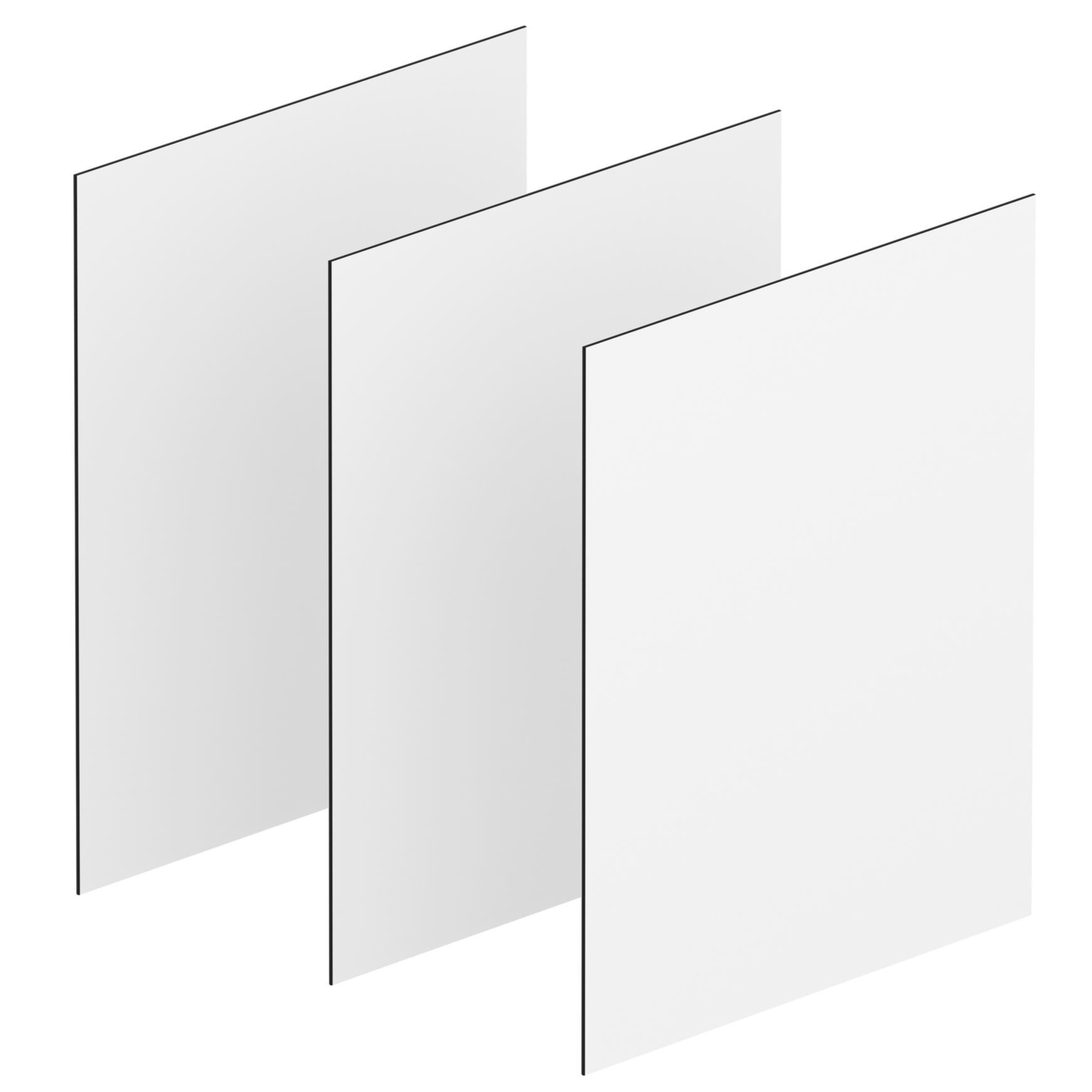

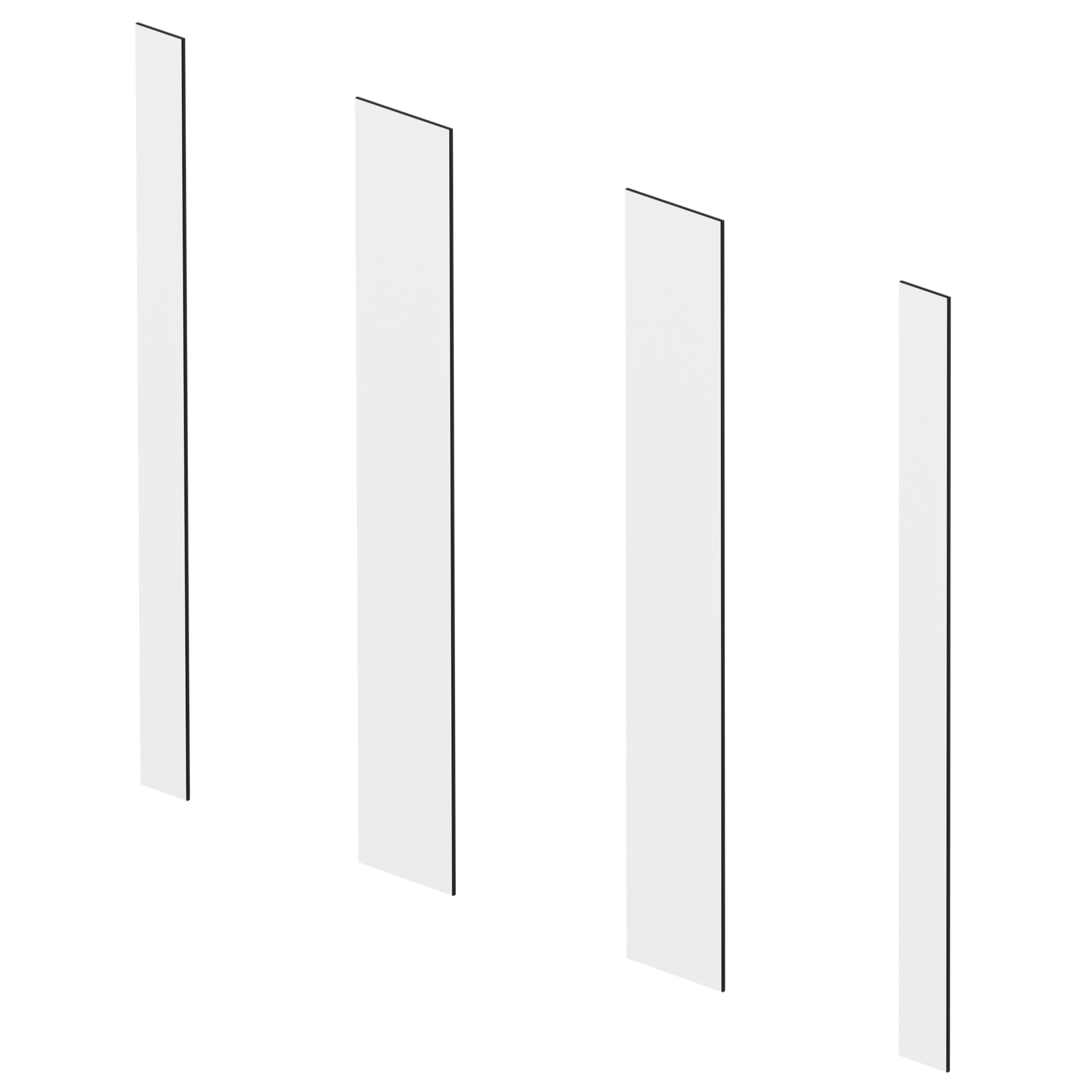

Divisions
Panels separating individual cubicle spaces
-
Pilasters
Front support panels between cubicles
-

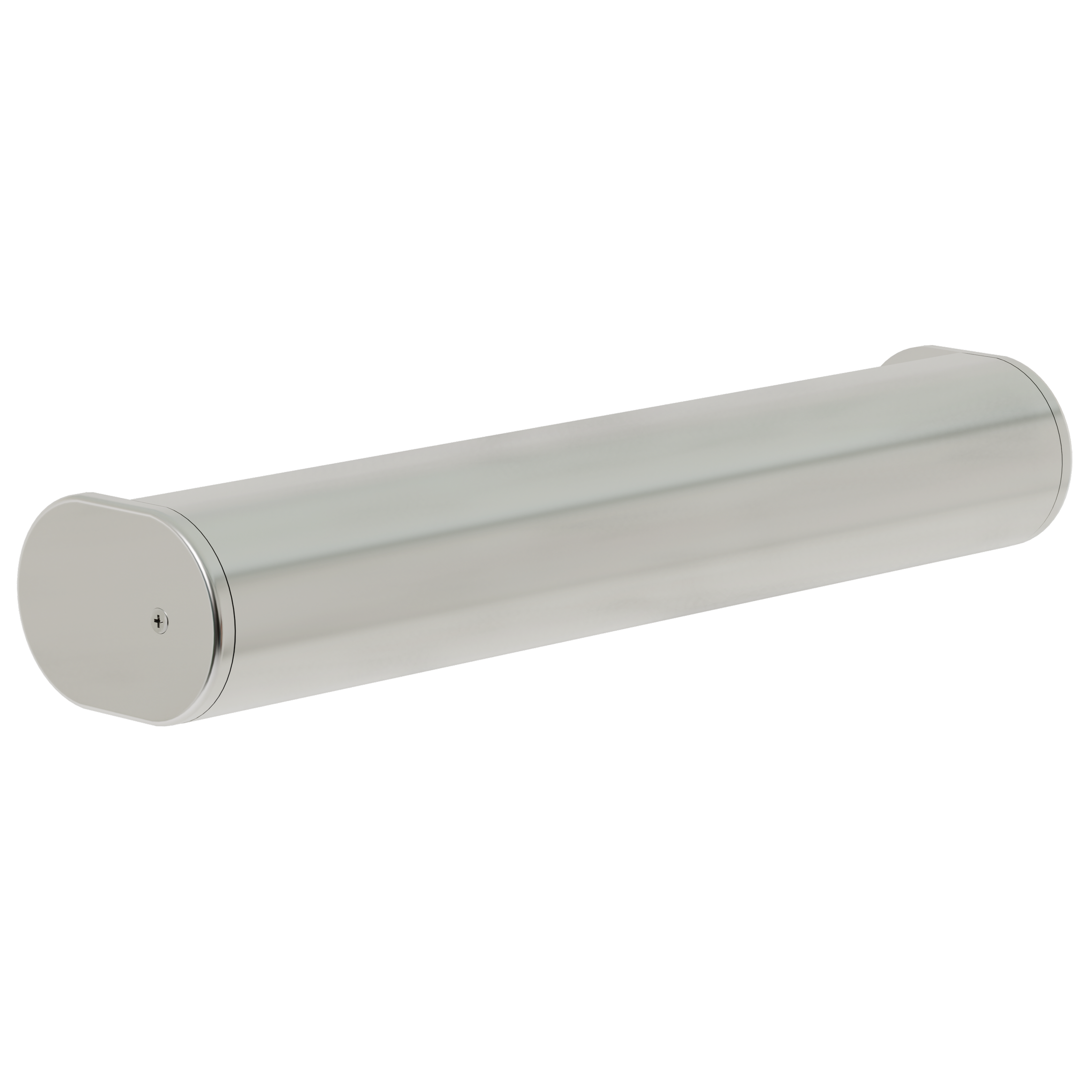

![Trovex Essential Cubicle system headrail]()
Head rail
Anodised aluminium headrail with end caps
-

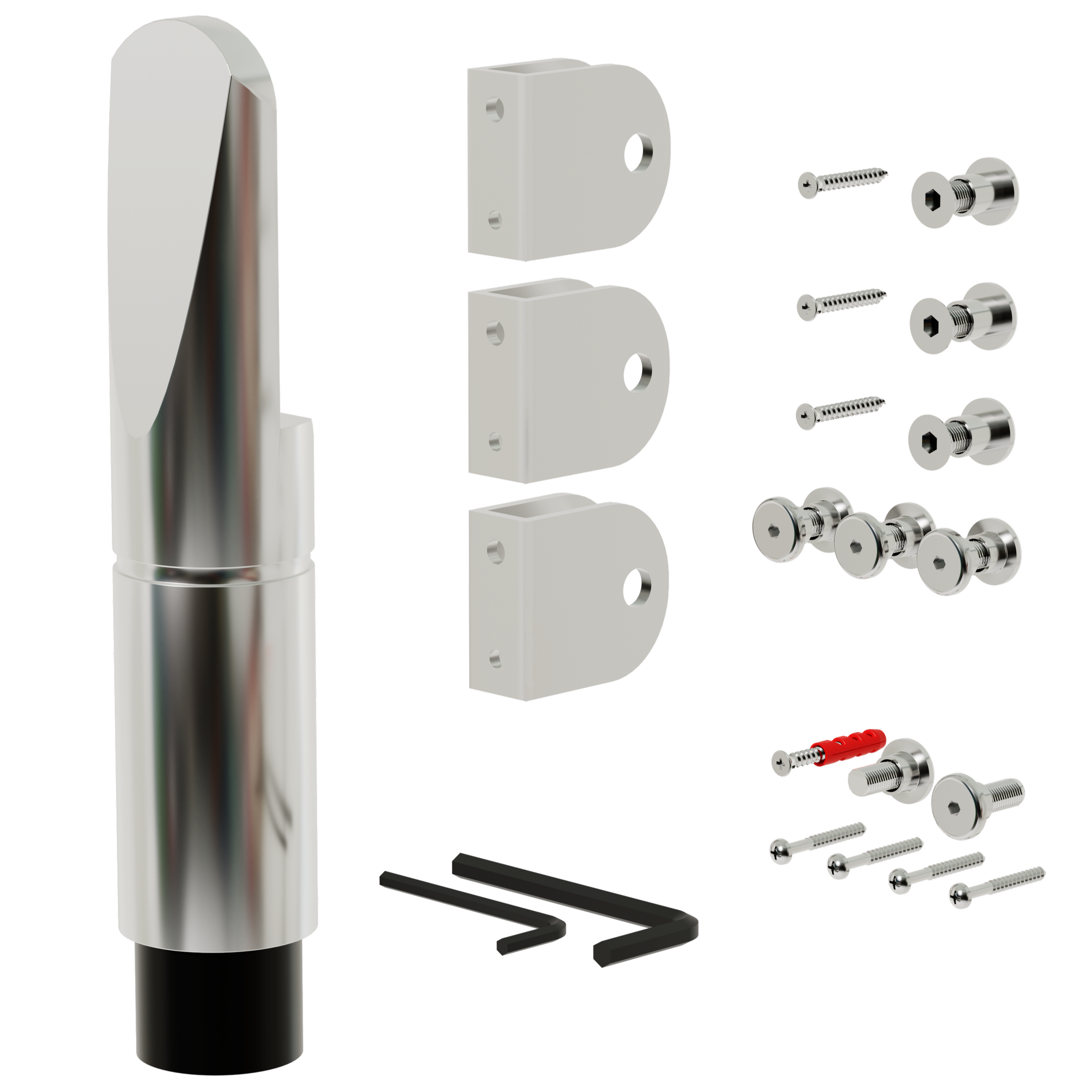

![Trovex Essential Cubicle system pedestal kit]()
Pedestals kit
Height-adjustable cubicle floor mount
-
![Trovex Essential Cubicle system indicator lock]()
Indicator lock
DDA compliant lock with emergency release
-
![Trovex Essential Cubicle system cleat kit]()
Cleat kit
Fixings for quick and secure cubicle assembly
-

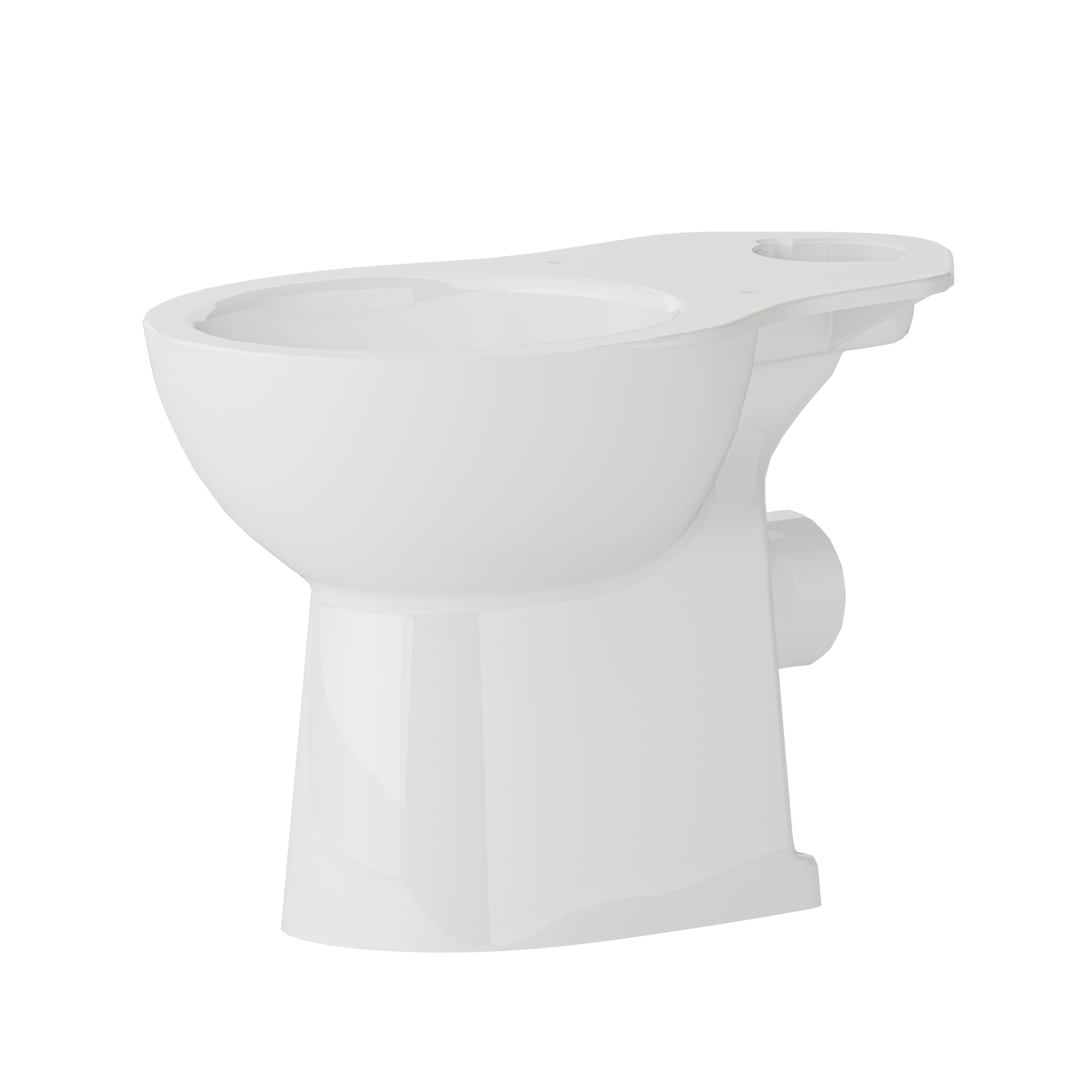

![Trovex Essential Cubicle system sanitaryware]()
Sanitaryware
Cisterns, toilet pans and seats as specified
-

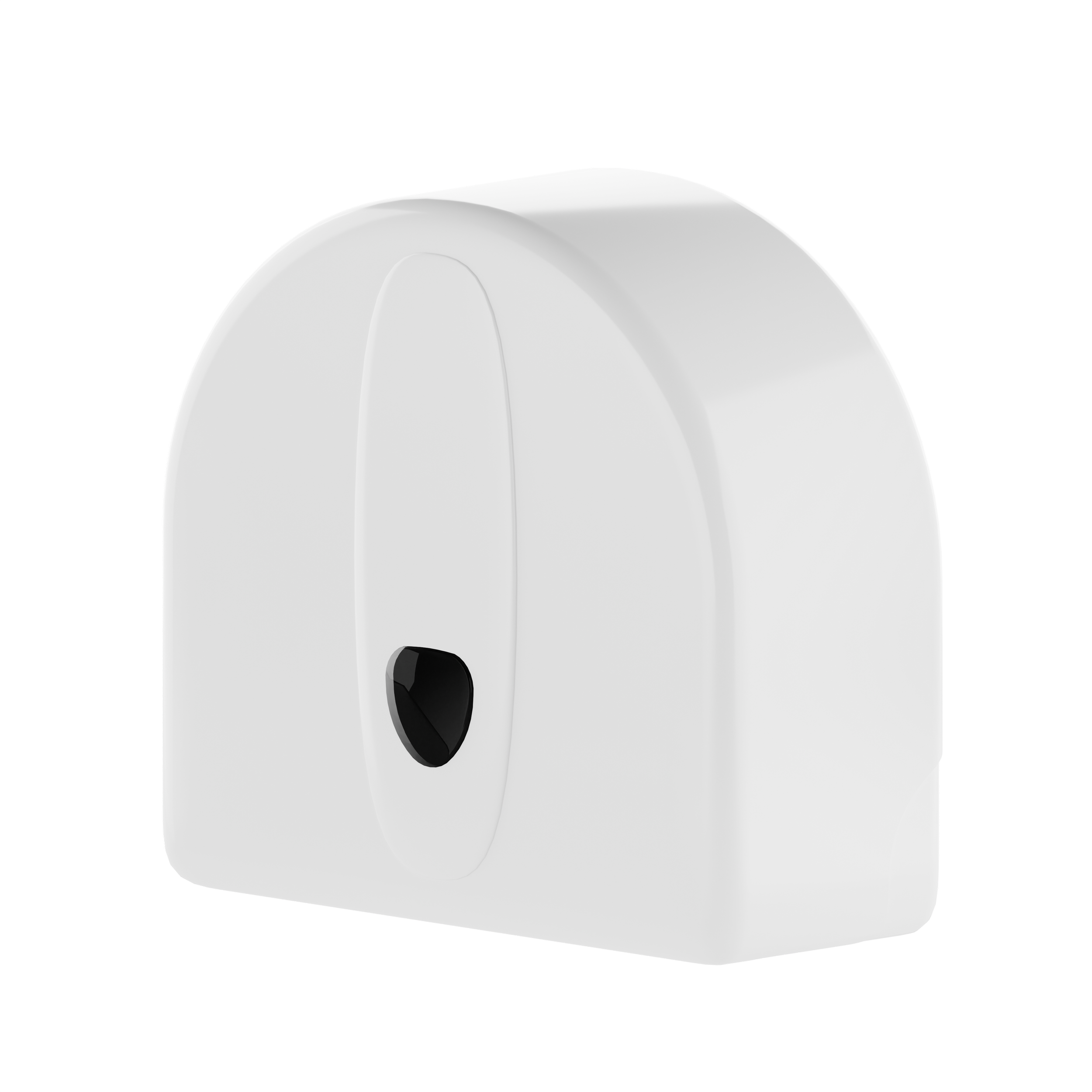

![Trovex Essential Cubicle system accessories]()
Accessories
Dispensers and coat hooks to suit

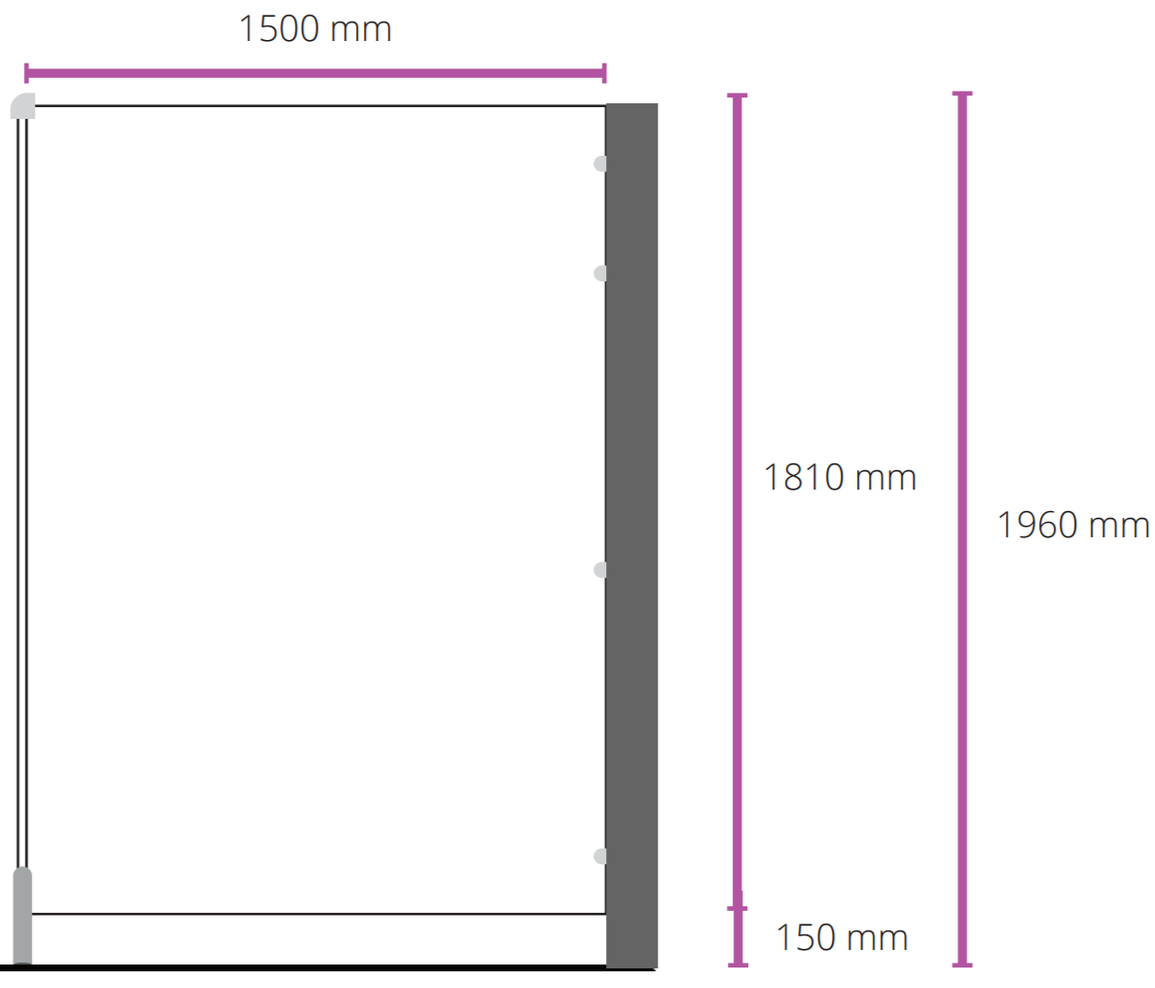

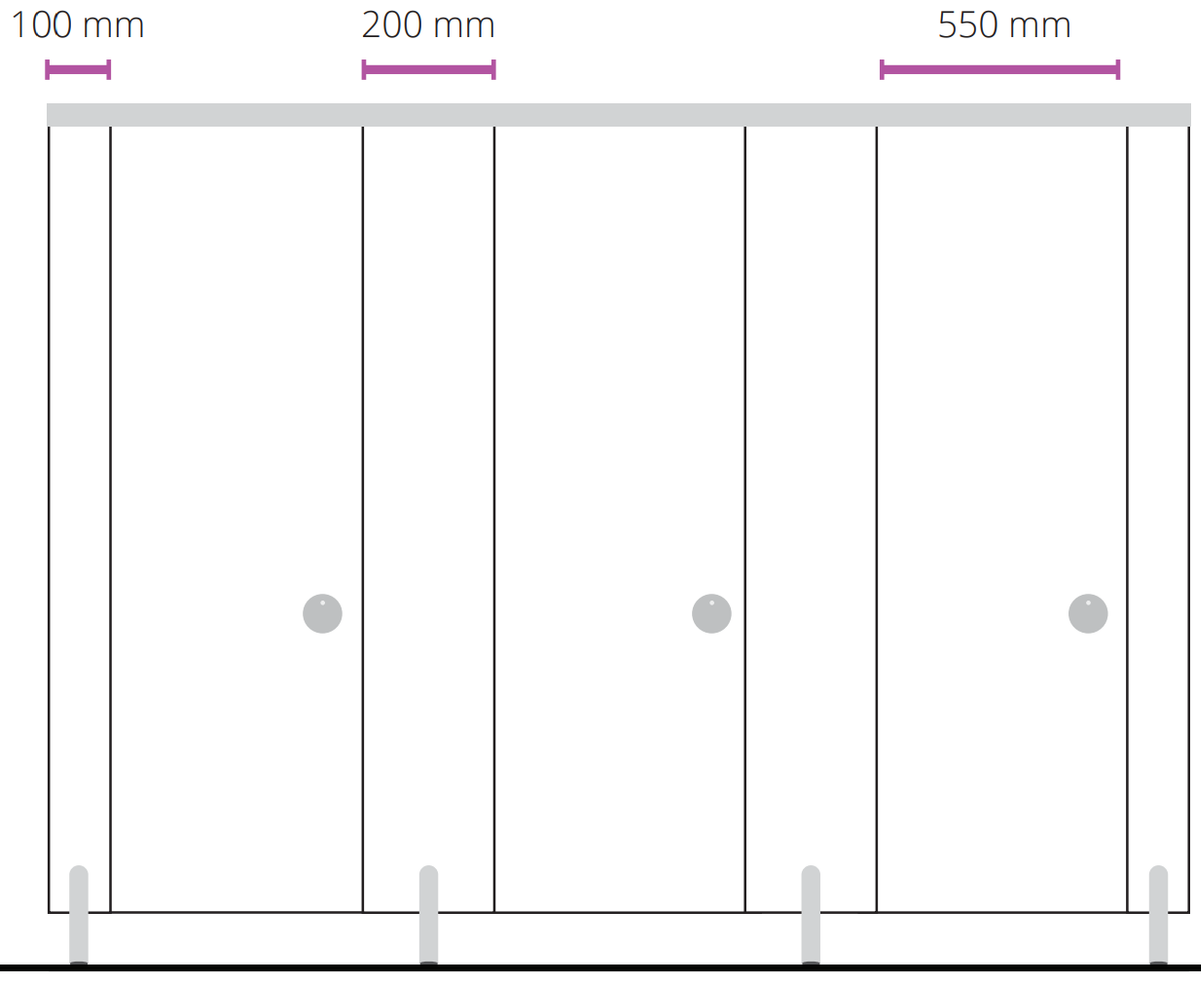

*The dimensions on the illustration are example, the system can be manufactured to suit requirements.
-
![Essential cubicles NBS]()

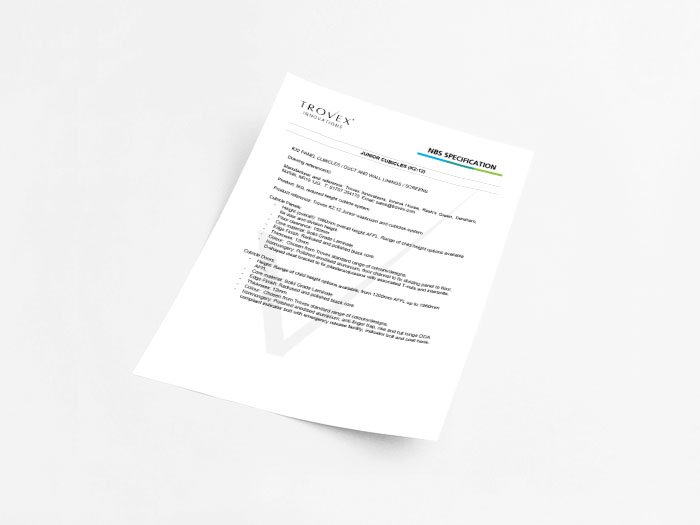

Essential cubicles NBS
-
![Essential installation guidance]()
Essential installation guide
-

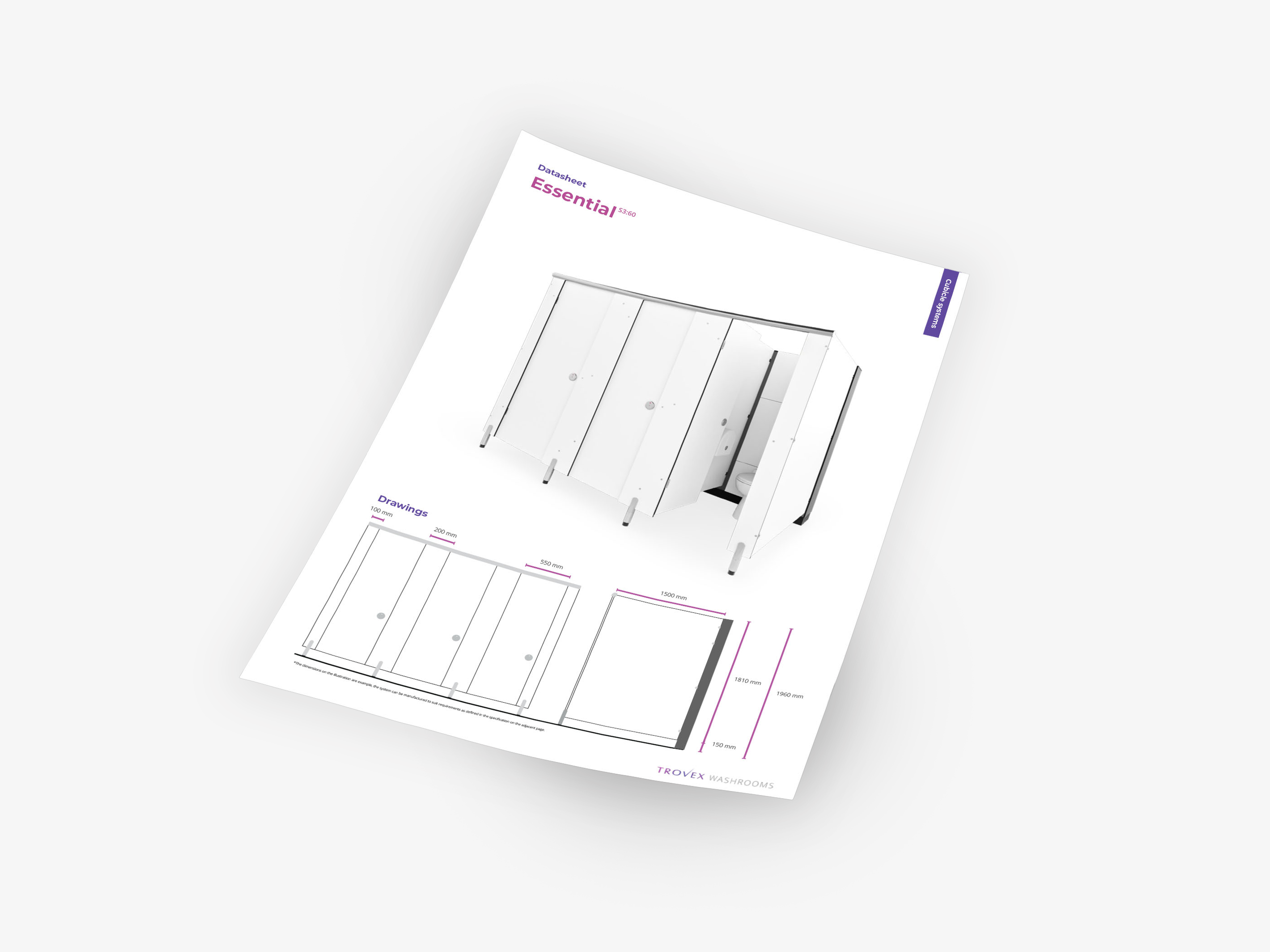

![Essential datasheet]()
Essential datasheet
