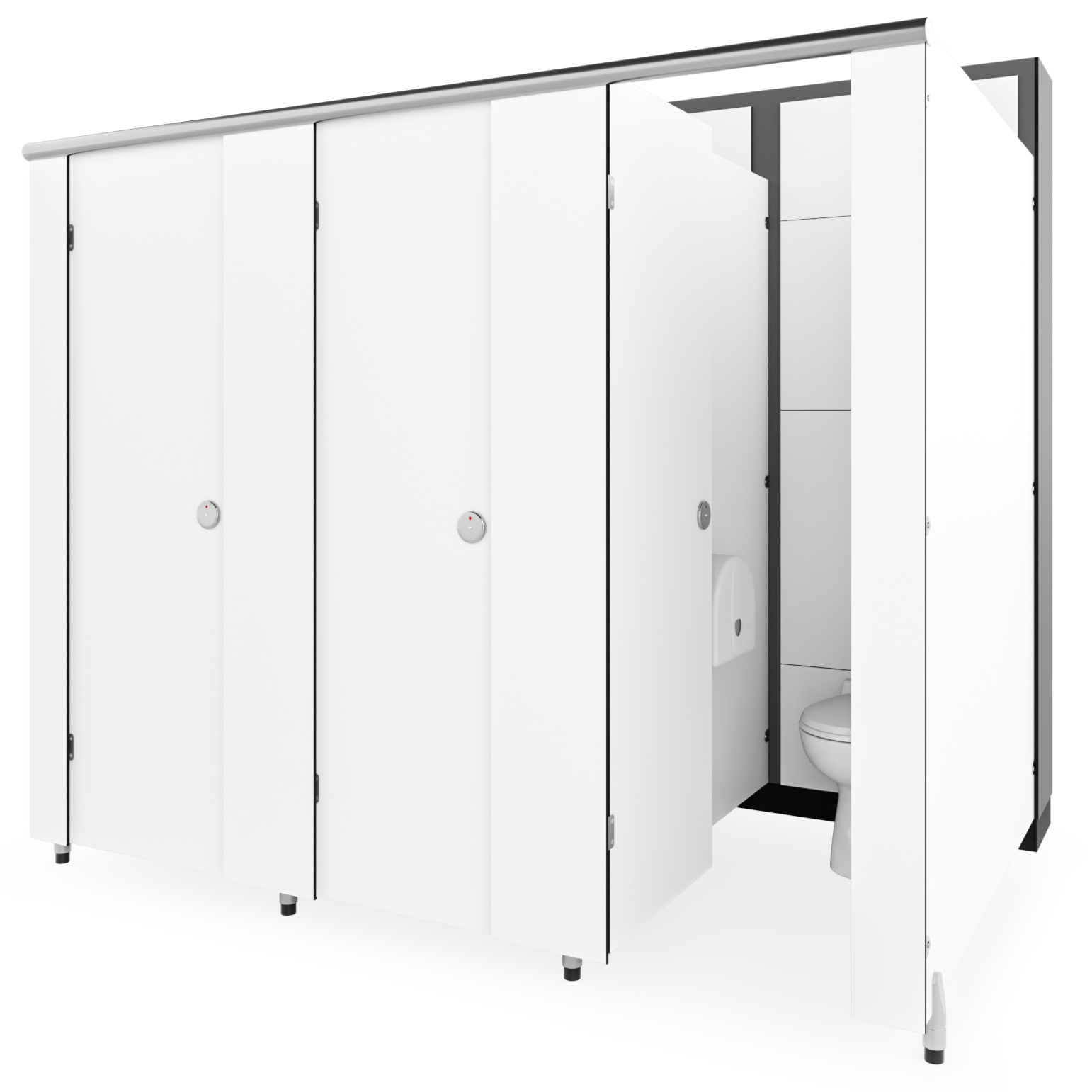

Refined (X5:80) cubicle systems

Refined (X5:80)

Refinements for an enhanced appearance

Refined design and privacy built on the durability of the Essential system, offering a enhanced appearance and user comfort. Ideal for corporate, retail and hospitality.

Request a quote
Resources
Overview

Versatile and robust

The Refined cubicle system offers a sleek, concealed look for premium washrooms. Panels, pilasters, and doors are made from 12mm SGL with edge-laminated, polished profiles and fixed flush using secret brackets. Satin-anodised pedestals are recessed for a clean plinth line, with a slim D-profile headrail and discreet end caps. Hardware includes soft-close, anti-finger-trap hinges, DDA-compliant bolts with subtle emergency release, and minimalist satin coat hooks. Ideal for executive settings, it balances durability and design. Standard sizes: 1960mm AFFL (150mm clearance), 1500mm depth (1800mm optional), 700mm min width, 1810mm division height.

Ratings:

Robustness:

Privacy:

Price:

Essential vs Refined Subtle feature differences between the two cubicle systems explained
Trovex Essential pedestal close up

Essential

Privacy and appearance

Pedestals are fixed to the front and the overall profile is standard for basic privacy.

Trovex Refined pedestal close up

Refined

Privacy and appearance

Pedestals are set back and the overall profile is lowered for improved appearance and privacy.

Trovex Essential fixings close up

Essential

Appearance

Fixings are visible as standard.

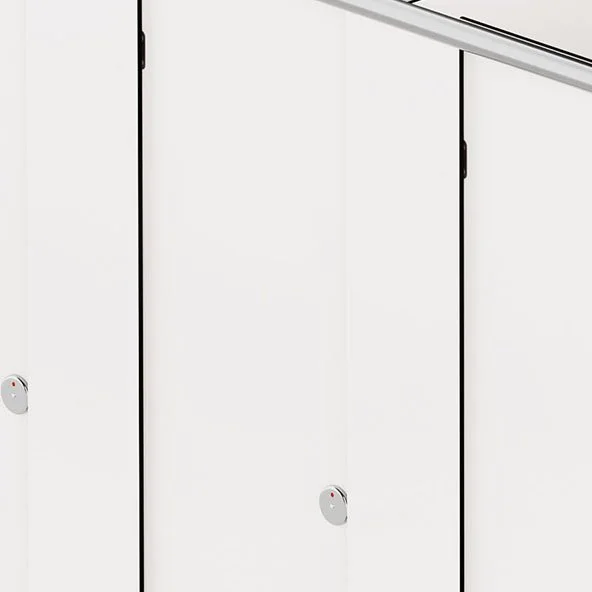

Trovex Refined fixings close up

Refined

Appearance

Secret fixings are used to enhance the exterior appearance and simplify cleaning regimes.

Doors, divisions and pilasters Robust solid grade laminate with black radiused edges

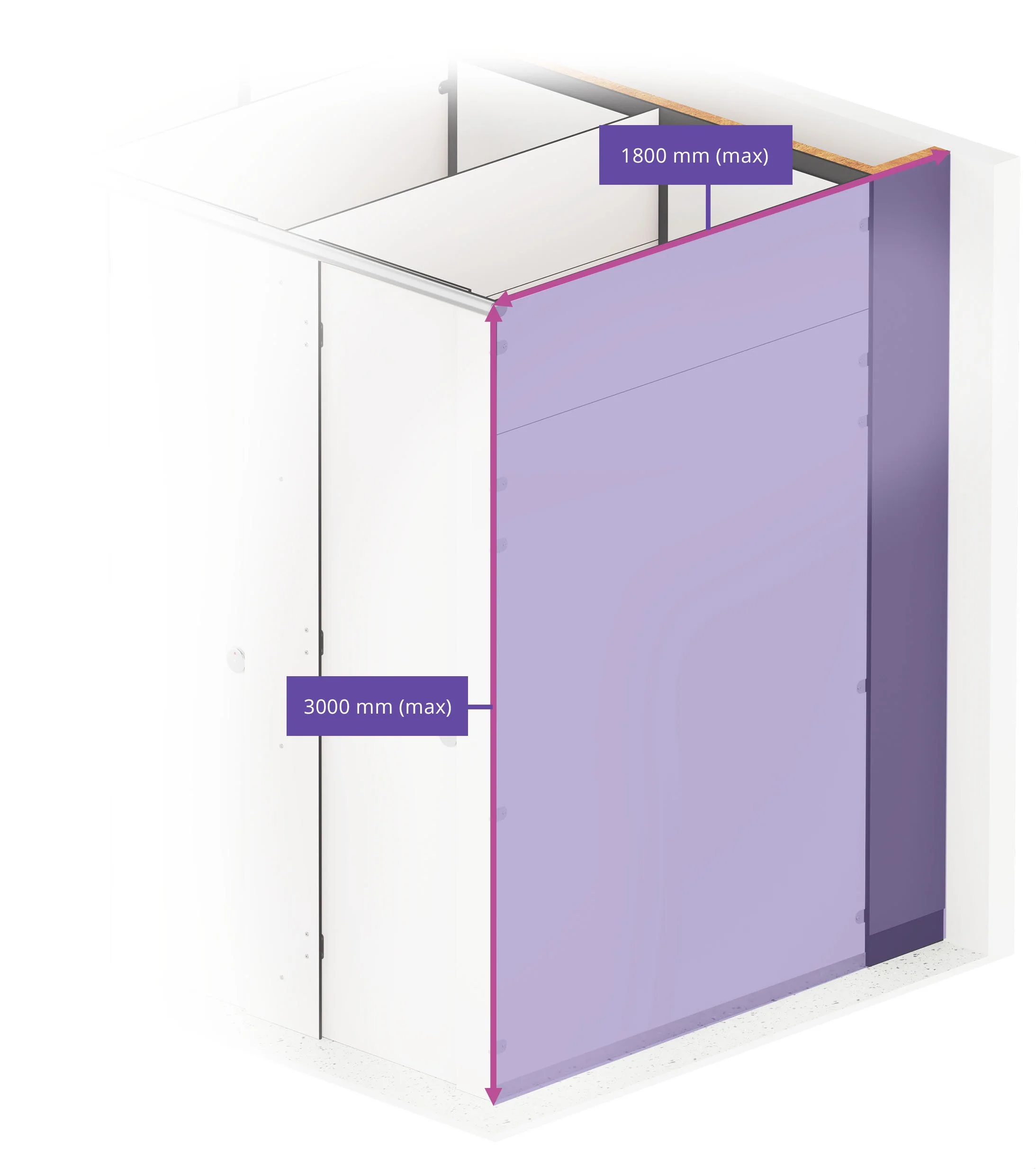

Trovex Privacy Cubicle system dimensions

Solid grade laminate

Solid grade laminate (SGL) is highly resistant to impact, scratches, and moisture, ensuring it can withstand the demanding conditions of high-traffic public and commercial bathrooms. Additionally, solid grade laminate is non-porous, which means it does not harbour bacteria or odours. It is also easy to clean and maintain, requiring minimal upkeep.

  • 12 mm thick solid grade laminate (SGL)

  • Black radiused and polished

  • Over 25 options for SGL colours and finishes

  • 2100 mm - maximum overall height AFFL including 100 mm floor clearance

  • 1800 mm - maximum recommended depth of cubicle including duct

In a typical pack
  • Essential (S3:60) Doors

    Doors

    Pre-drilled cubicle doors for easy installation

  • Essential (S3:60) divisions

    Divisions

    Panels separating individual cubicle spaces

  • Essential (S3:60) pilasters

    Pilasters

    Front support panels between cubicles

  • Essential (S3:60) headrail

    Head rail

    Anodised aluminium headrail with end caps

  • Essential (S3:60) pedestals kit

    Pedestals kit

    Height-adjustable cubicle floor mount

  • Essential (S3:60) indicator lock

    Indicator lock

    DDA compliant lock with emergency release

  • Essential (S3:60) cleat kit

    Cleat kit

    Fixings for quick and secure cubicle assembly

  • Essential (S3:60) sanitaryware

    Sanitaryware

    Cisterns, toilet pans and seats as specified

  • Essential (S3:60) accessories

    Accessories

    Dispensers and coat hooks to suit

Drawings

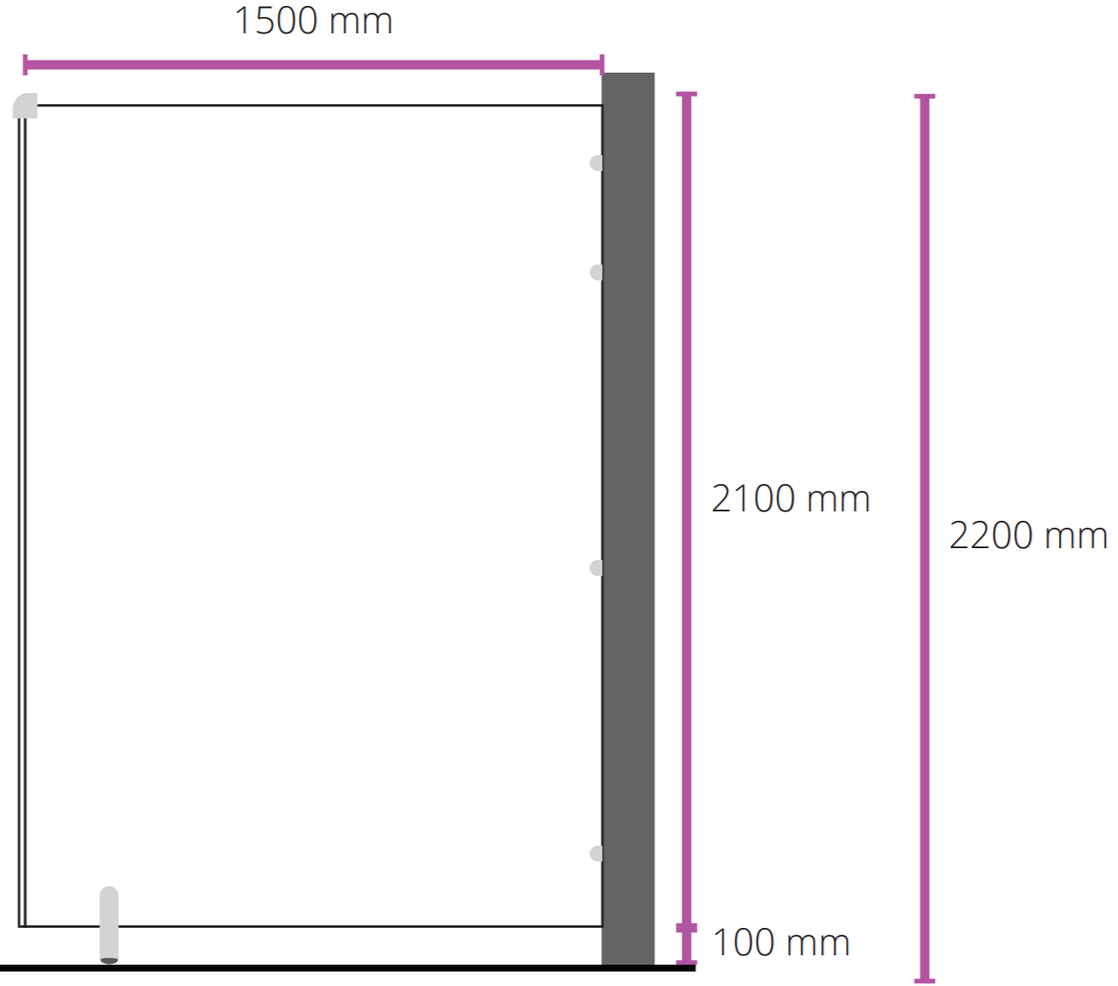

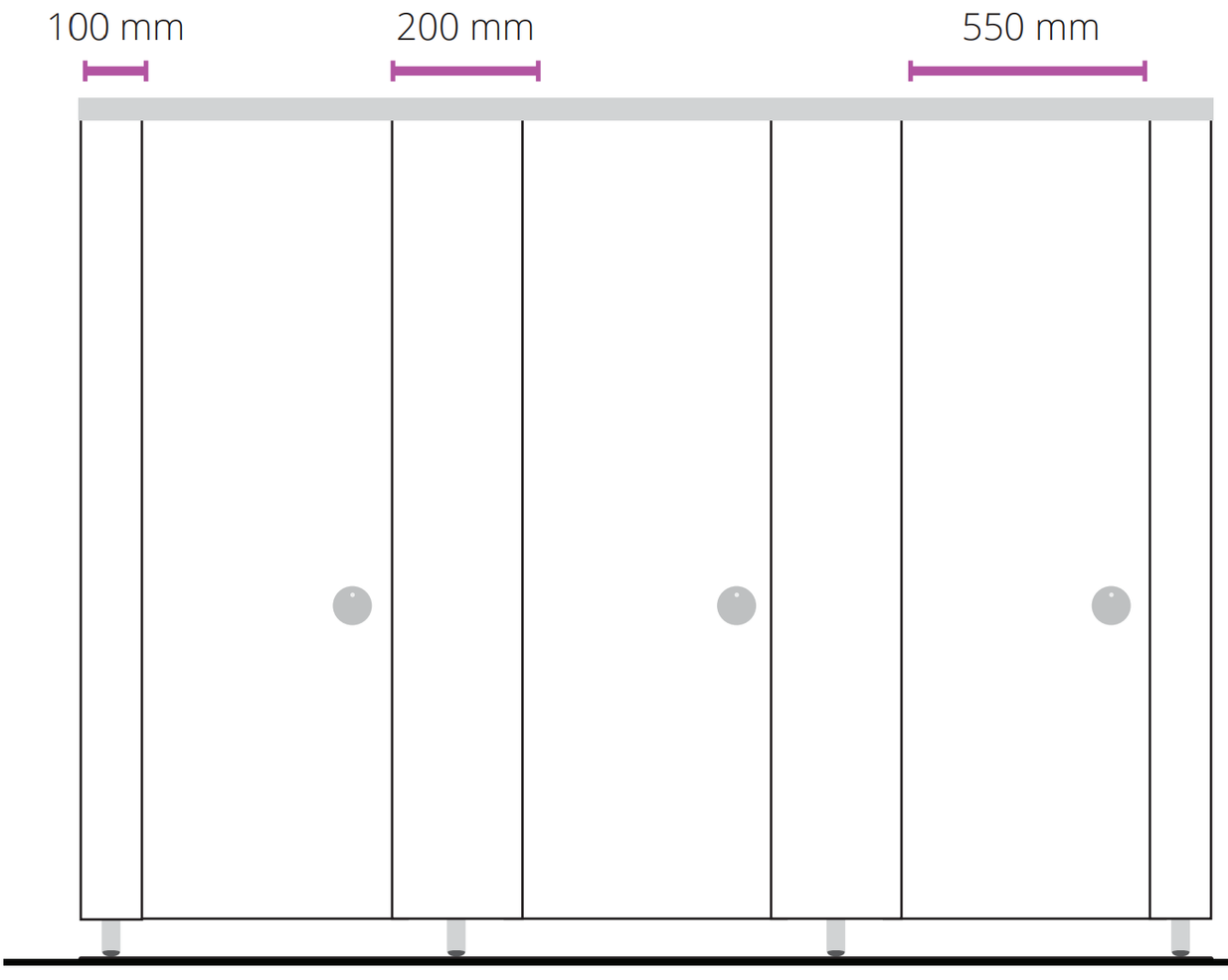

Essential (S3:60) drawings
Essential (S3:60) drawings

*The dimensions on the illustration are example, the system can be manufactured to suit requirements.

Resources

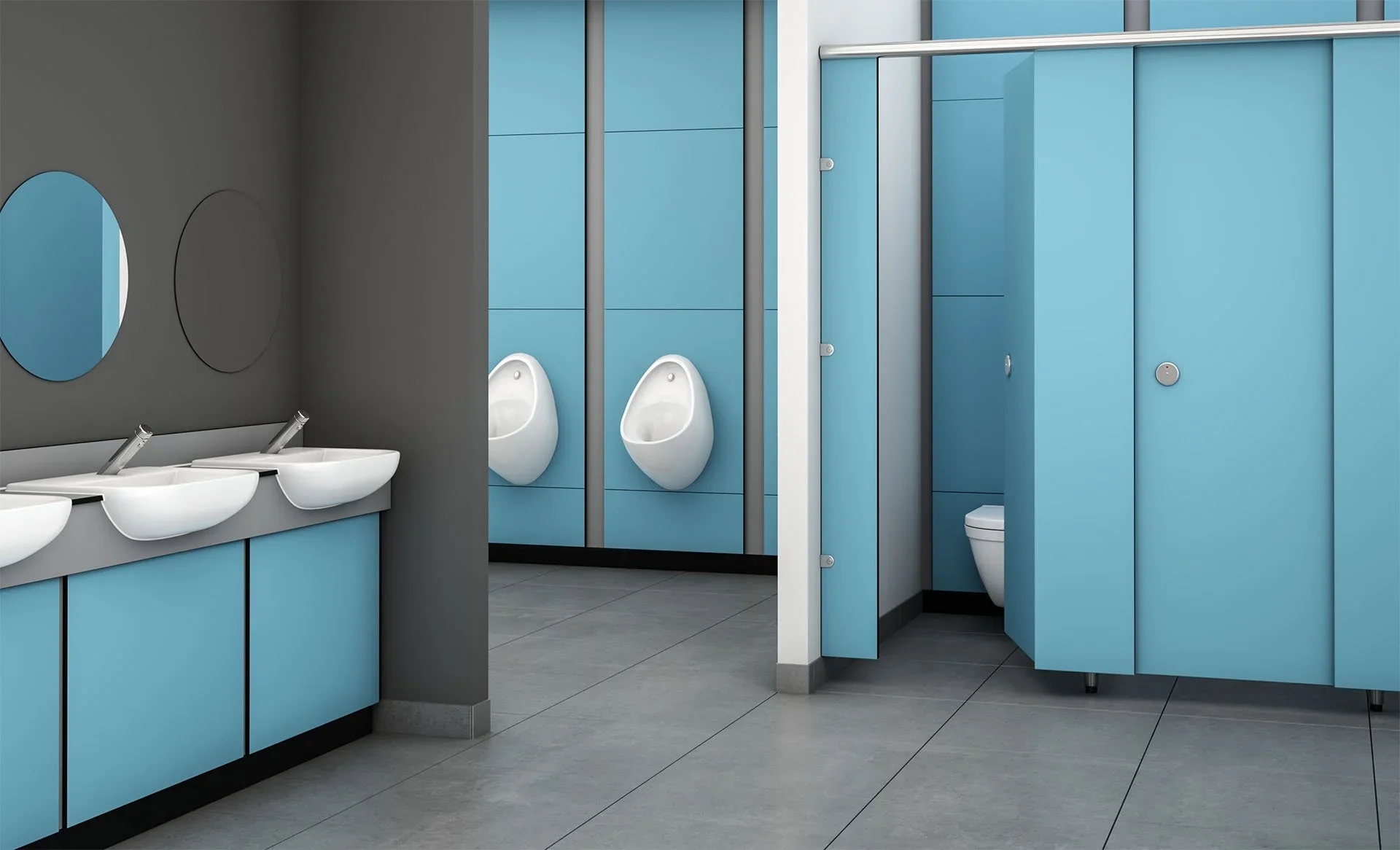

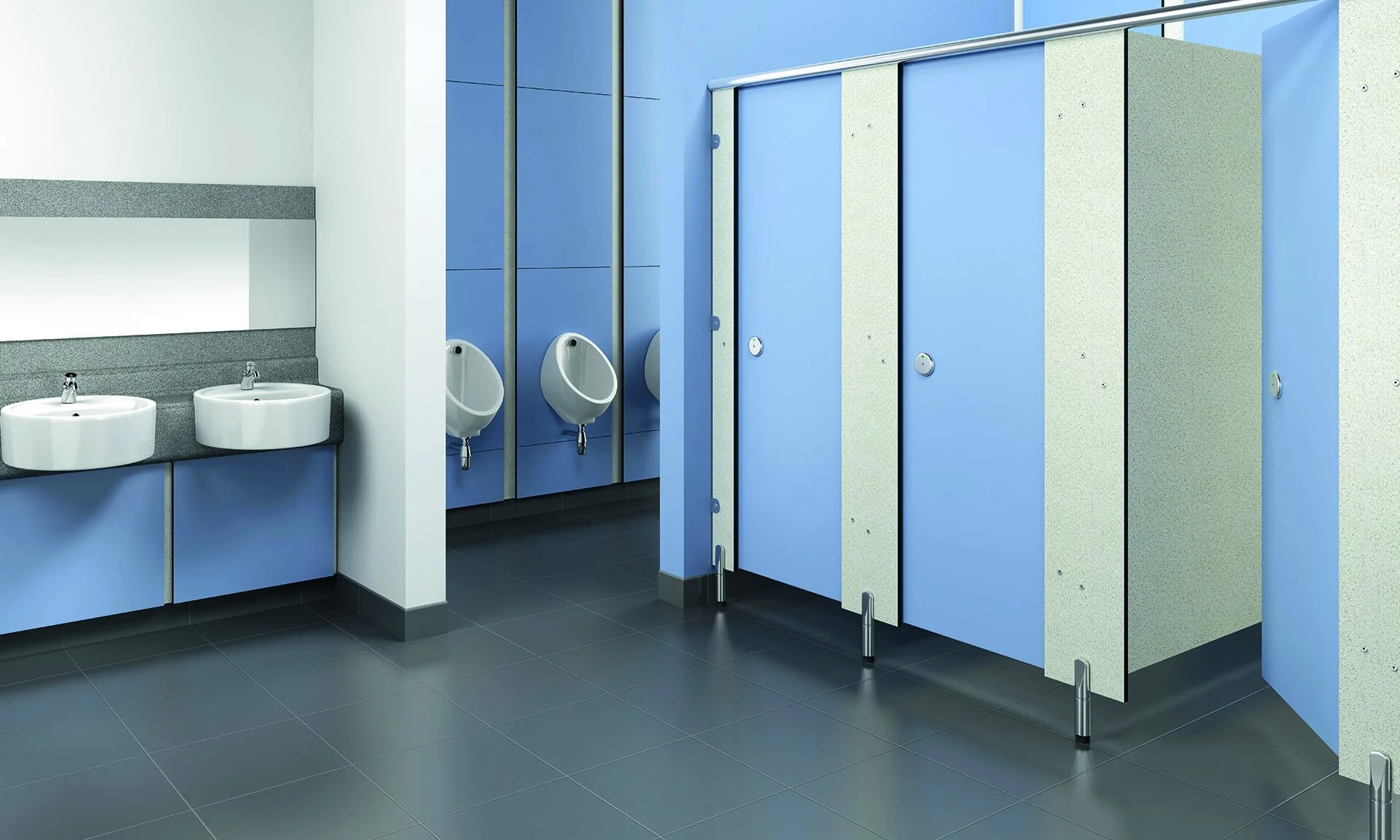

Colours and finishes With many possible colour and finish combinations, easily create the perfect washroom for your business
